Hi! I'm glad to welcome you to the website created in collaboration with JLCMC, where you can find all the parts I used to build my VORON 2.4 XL project. This is where you can see the proven components that went into my printer. I hope this list will help you with your own projects! (Cześć! Miło mi powitać Was na stronie stworzonej we współpracy z JLCMC, gdzie znajdziecie wszystkie części, których użyłem do budowy mojego projektu VORON 2.4 XL. To właśnie tutaj możecie zobaczyć sprawdzone komponenty, które trafiły do mojej drukarki. Mam nadzieję, że ta lista pomoże Wam w realizacji własnych projektów!)
Want to discover deals on others? – Click here to explore more JLCMC Campaign!
Extruded Aluminum - T-Slot 20 Series(EU)
Linear Shaft - Solid, Straight, g6 Tolerance

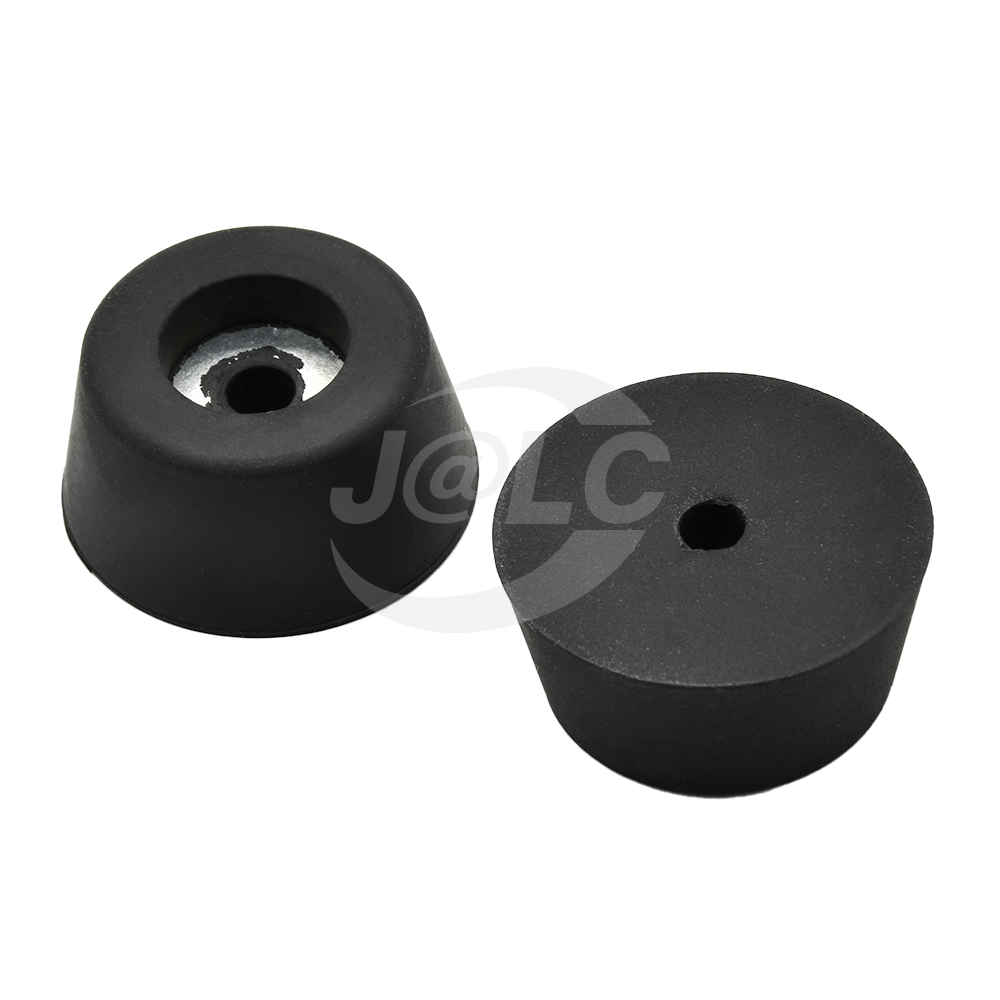

Rubber Foot Pad Gasket Type

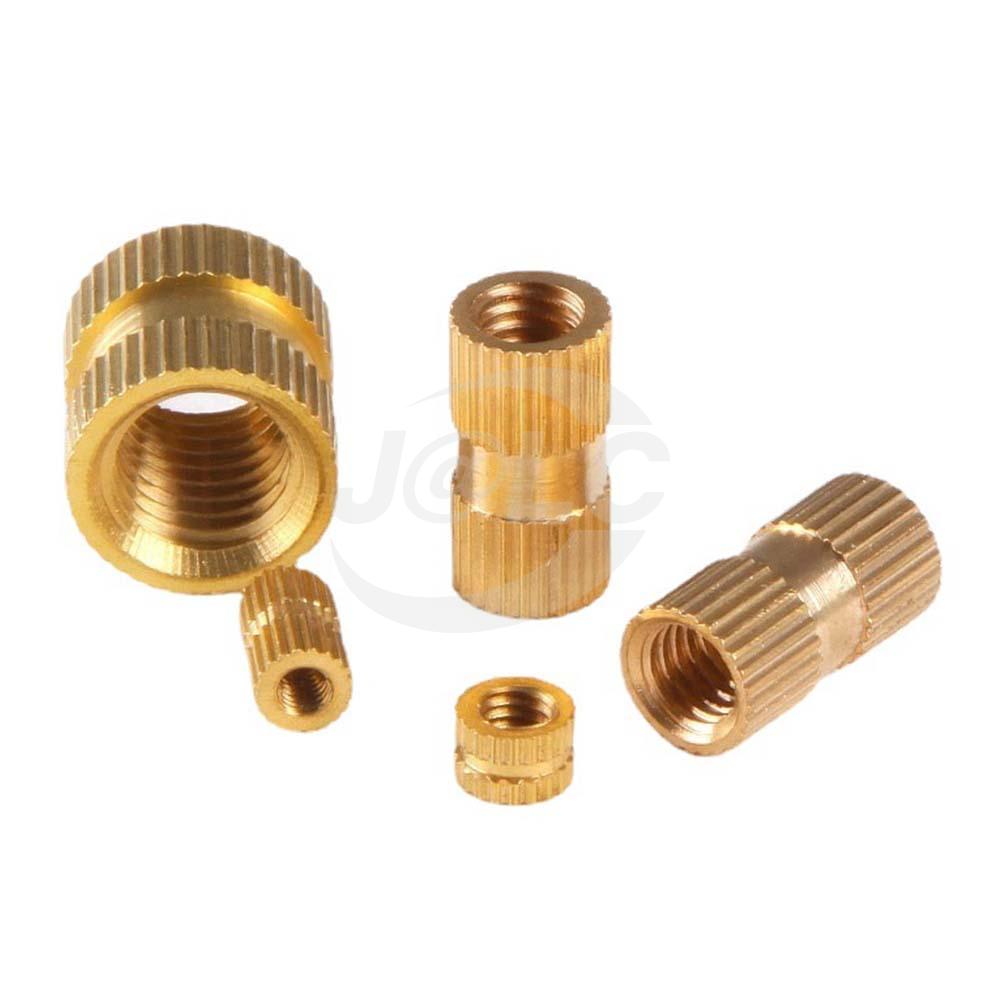

Insert Nut Through Hole
WS 9200 Hex Socket Cap Head Self-Tapping Screw

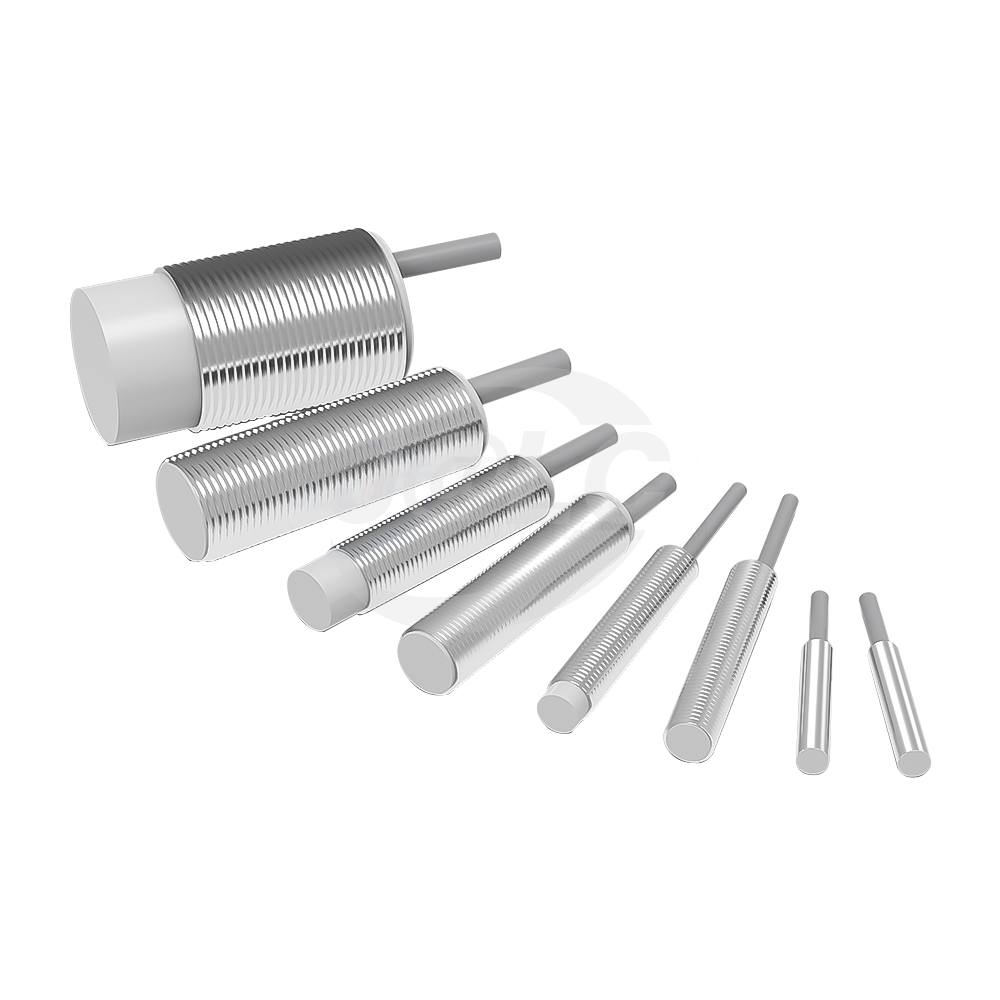

CKF Series Capacitive Shielded M18 8mm NPN NO Proximity Sensor

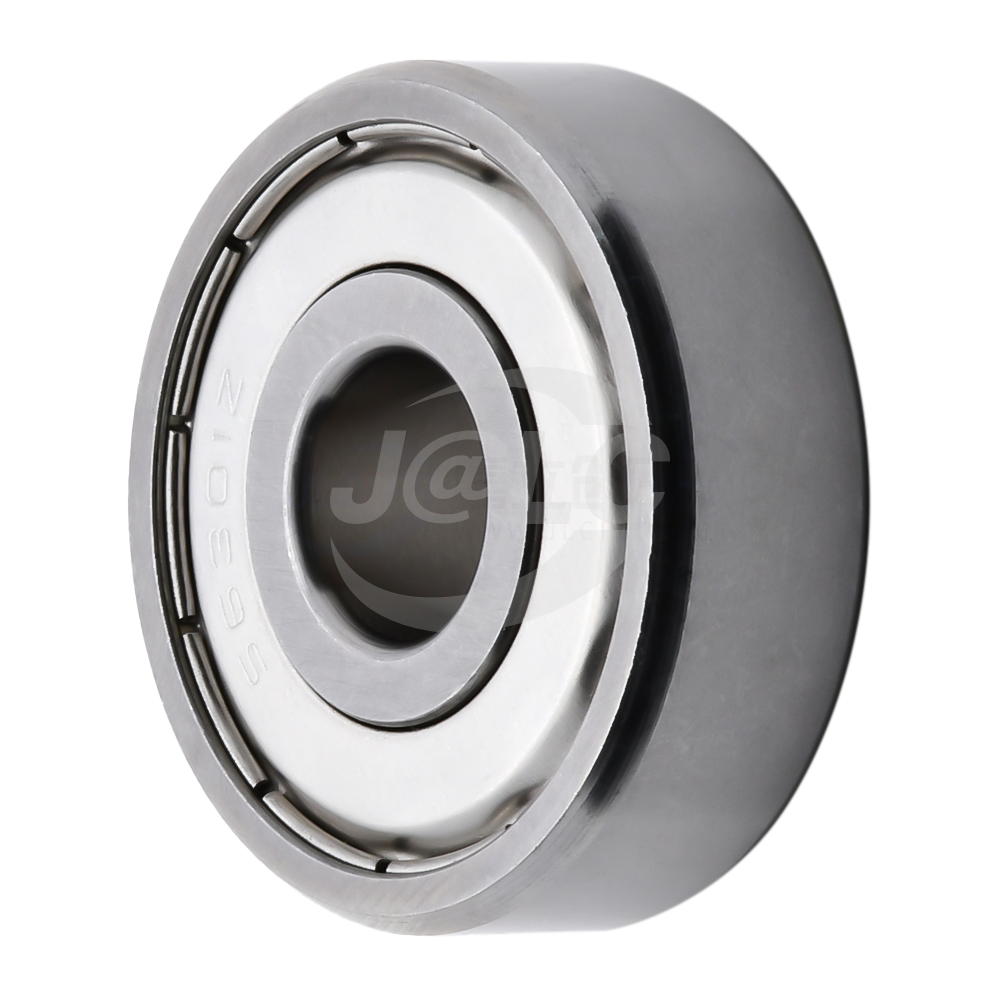

Deep Groove Ball Bearing Double Side with Dust Cover
JAPC Series Square Proximity Sensor

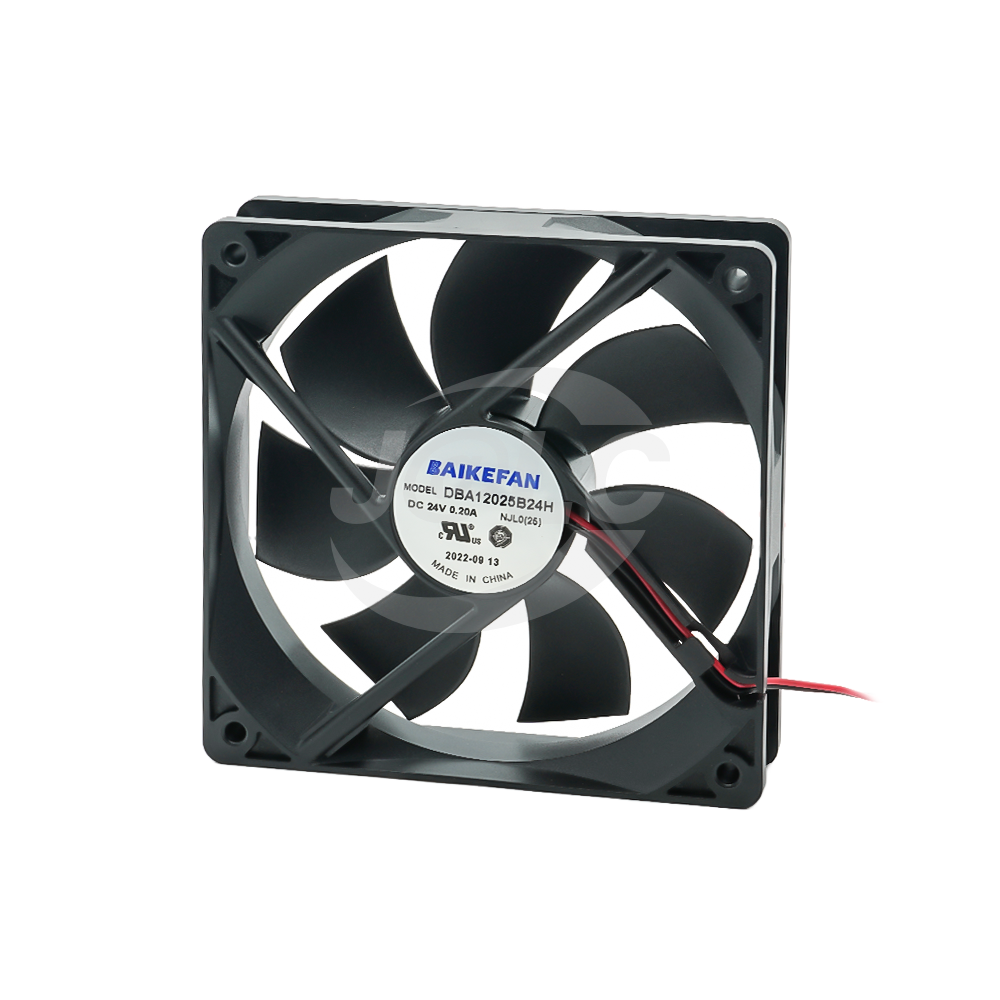

Economical DC Axial Flow Heat Sinks with Dual Ball Bearings
Flat Washer Level A
EURO 20 Series Connection Accessories Die-Cast Angle Bracket

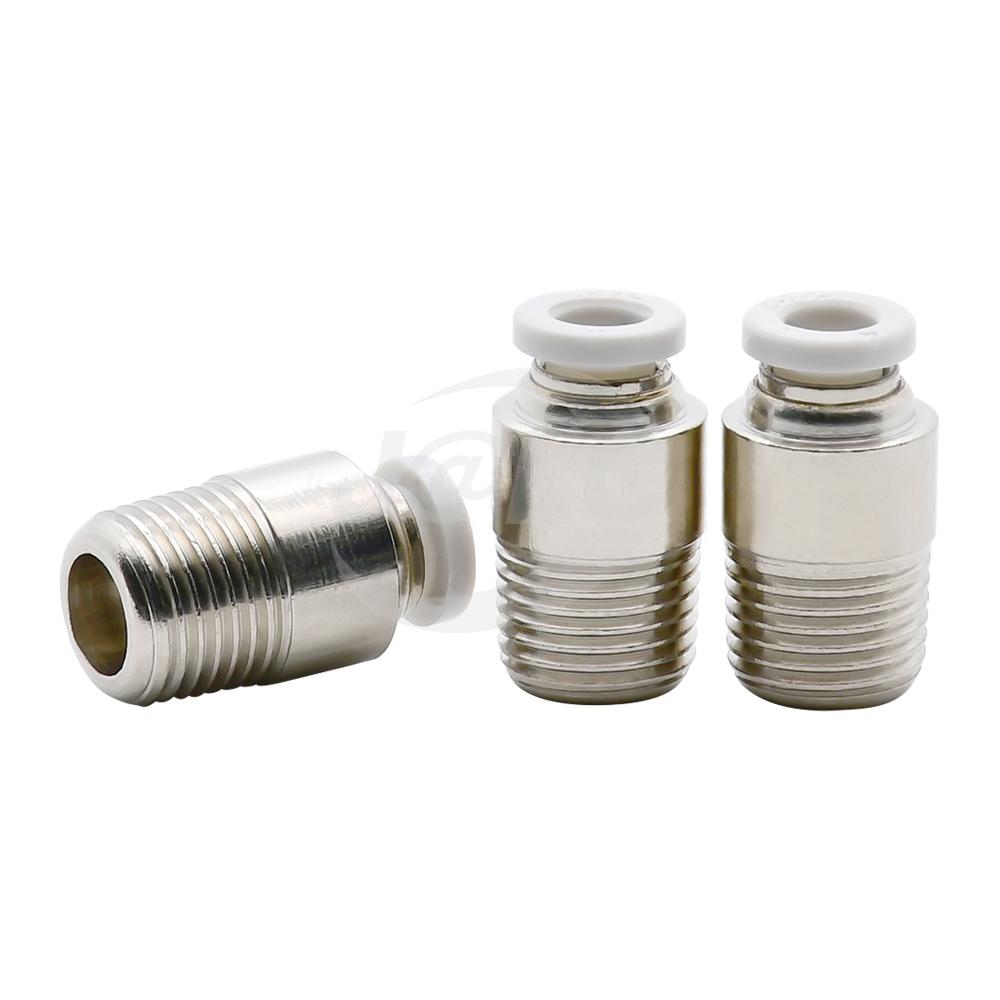

Air Hose Quick Connector Fittings - Economy & Mini, External/Internal Hex/Elbow, Male Thread
Hex Socket Screw - Full/Partial Thread, Standard Type (DIN 912/GB/T 70.1)

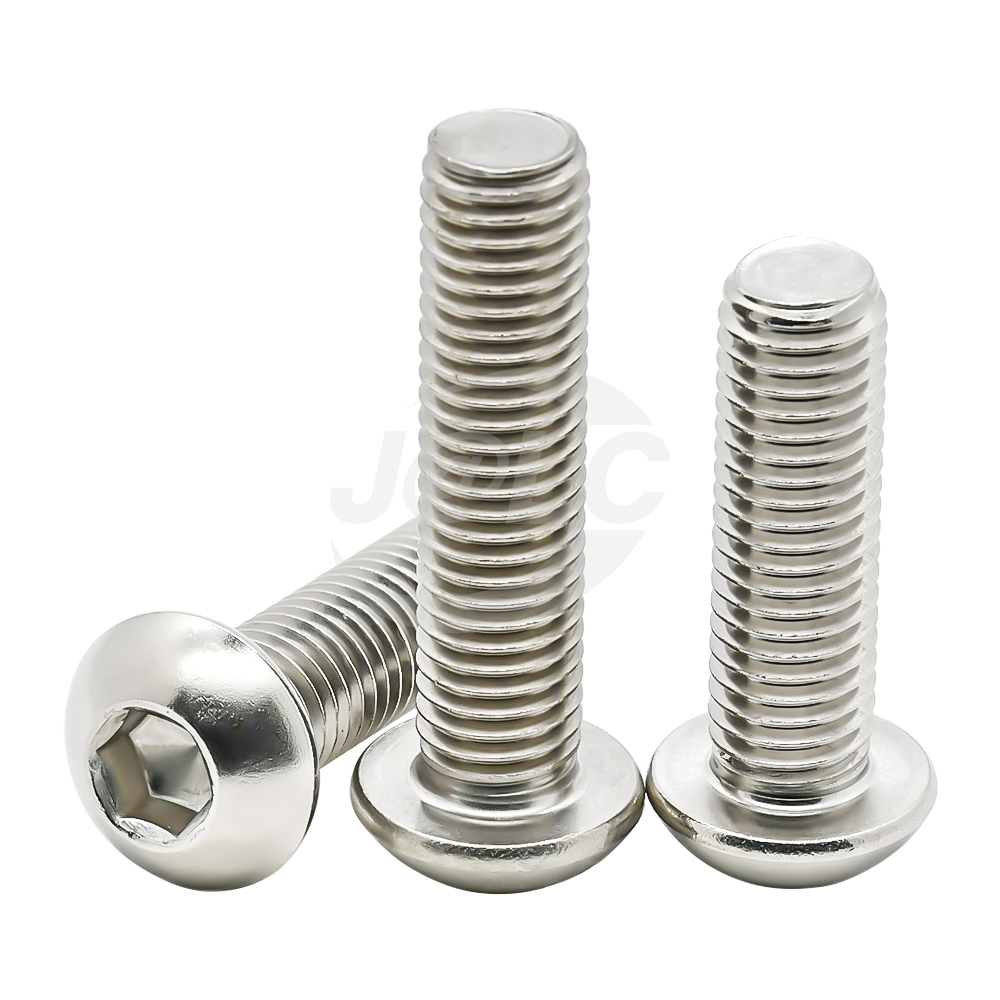

ISO 7380 Hex Socket Button Head Screw

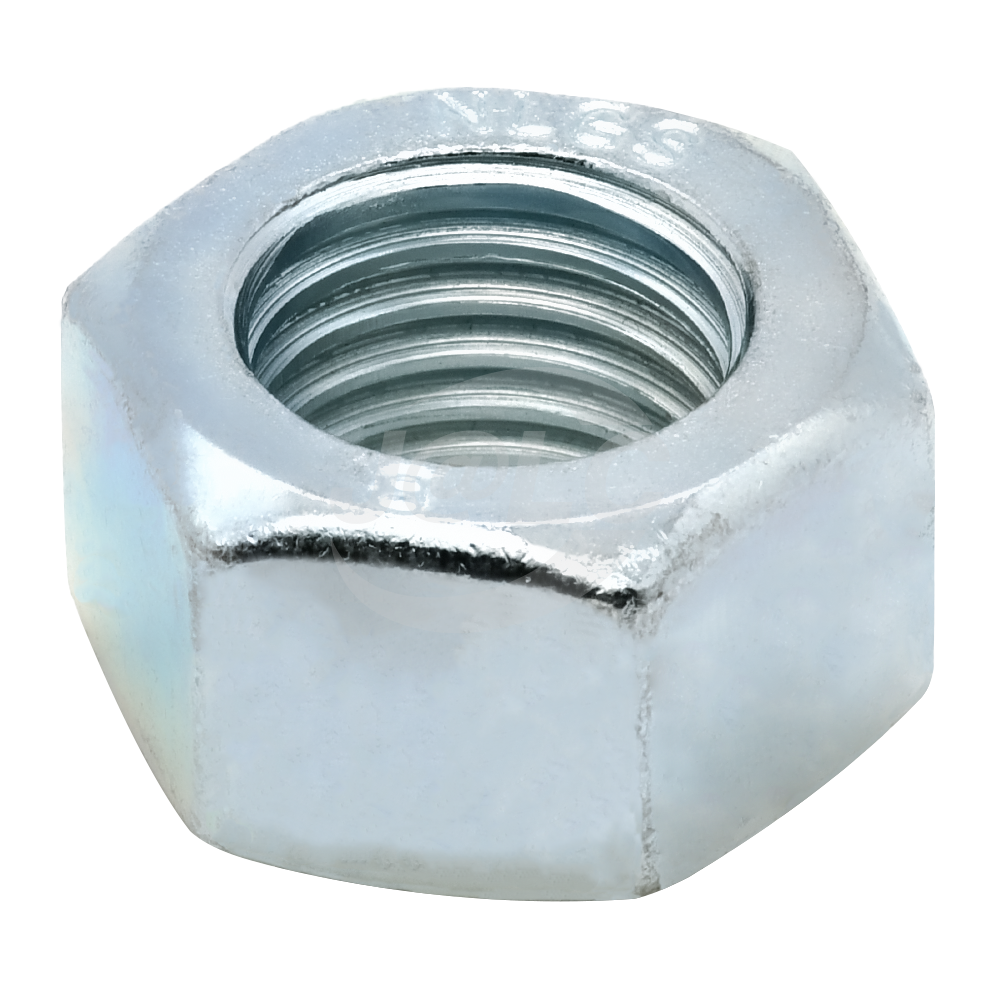

Hex nut Standard/Thin/Thickened Coarse/Fine thread
Knurled Nut Straight Line Through Hole Type
Precision gasket ring
DIN 7991/GB/T 70.3 Hex Socket Countersunk Head Screw
M3 M4 M5 Roll-in T Nut with Ball Spring EU 20 Series Aluminum Profile Fasteners
M3 M4 M5 T Nut 20 Series Aluminum Profile Fasteners
Build Big & Save Big – Polish Dragon's Special Deal
Prouduct Preview
FAQ
- Which fastener models are used in this equipment, and what are their available dimensions?
The fasteners include EDLA screws (M5×L40, M3×L8/12/16/20/25/30/40/50), EDLG screws (M5×L10/16/30, M4×L6, M3×L6), EDLJ screws (M3×L6/10), and TPAB ball nuts (M3, M5).
- What are the specifications and lengths of the guide shafts?
The guide shafts are BACA, including L=60mm (6 pcs) and L=35mm (2 pcs).
- What are the profiles and lengths of the aluminum extrusions?
The aluminum profiles are TXCJ, with lengths L=378mm (2 pcs), 468mm (2 pcs), 665mm (3 pcs), 508mm (5 pcs), 685mm (7 pcs), and 800mm (5 pcs).
- Where did the linear guide rail recommended by Adrian go?
The linear guide rail recommended by Adrian is no longer available. We contacted Adrian, and he confirmed that the suitable replacements are E-BMN9H and E-BMN12H. Please check the details at the following link: https://jlcmc.com/product/s/B03/E-BMN/economical-linear-guide-mini-standard-type-7,9,12,15
