Item		Positive pressure (DP2)	Compound pressure (DP5)
Pressure type		Standard pressure
Rated pressure range		-0.1MPa~1.0MPa	-100kPa~100kPa
Set pressure range		-0.1MPa~1.0MPa	-100kPa~100kPa
Resistant to pressure		1.5MPa	500kPa
Suitable for fluids		Non-corrosive gas
Voltage		12~24V DC±10%
Current consumption		24V 30mA Max	12V 50mA Max
Switching output		NPN OC output: 80mA/24VDC Max or PNP OC output: 80mA/24VDC
Repeat accuracy		±0.2% FS	±0.5% FS
Reaction time		Select by button operation: 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1000ms, 5000ms
Analog output	Voltage output	0.6V~5V (or slightly smaller)	1V~5V (or slightly smaller)
		Linearity: ±1%FS Output impedance: 1KΩ
	Current output	2.4mA~20mA (or slightly smaller)	4mA~20mA (or slightly smaller)
		Linearity: ±1%FS Maximum load impedance, when the power supply voltage is 12V: 300Ω; when the power supply voltage is 24V: 600Ω, minimum load impedance: 50Ω
Temperature range		Working temperature: 0~50℃ Storage temperature: -10~60℃ (non-condensing)
Humidity range		35~85%RH
Temperature characteristics		±1%FS（25℃）
Protection level		IP40
Material		Shell: nylon + fiberglass LCD display: acrylic Pressure port: external thread POM + internal M5 copper nut Sealing ring: H-NBR Button: silicone rubber
Dimensions		30X30X25mm (plastic part)/30X30X43mm (including connectors)
Weight		About 80g (barometer body + user interface connector)

[Note 1]: Due to the influence of temperature and linear compensation, there may be slight fluctuations near the upper/lower range of the barometer, which is normal.

[Note 2]: Factory default NPN output [Note 3]: Factory default value is -50kPa

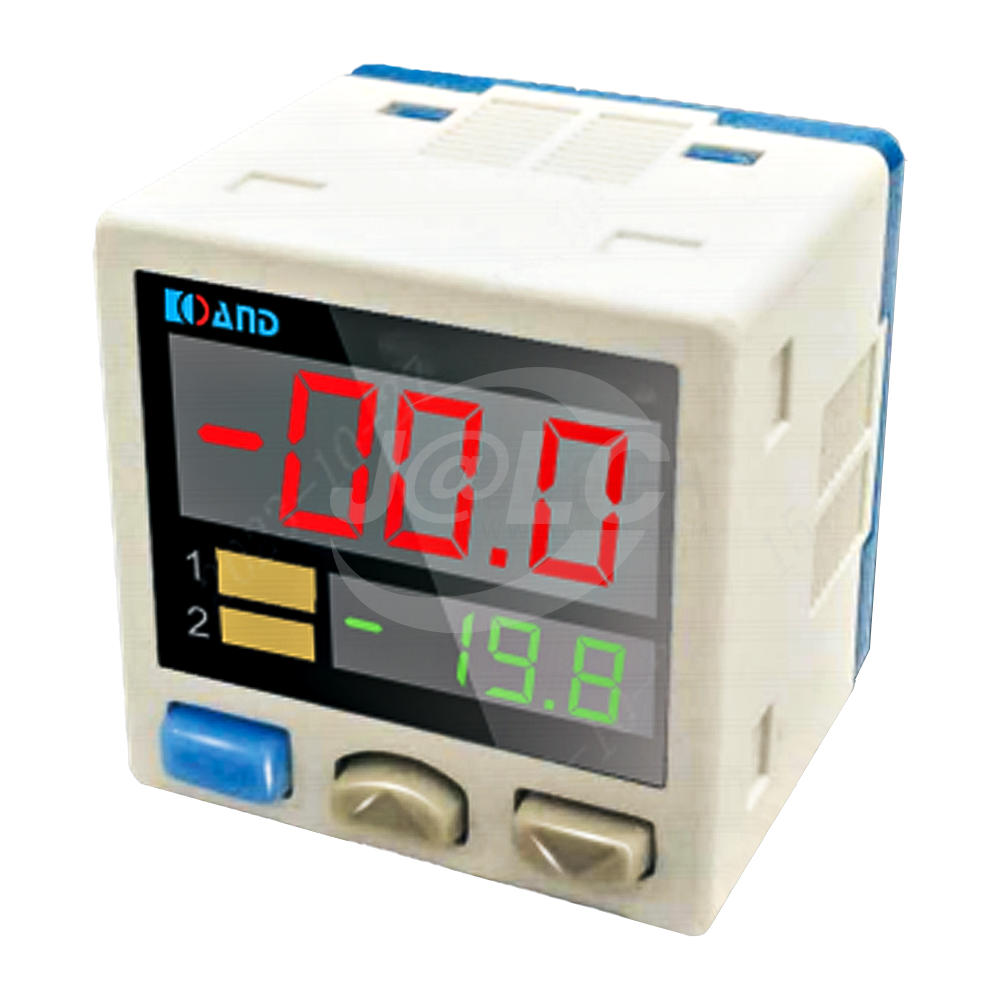

XP Series Pressure Sensor
