Images are for reference only

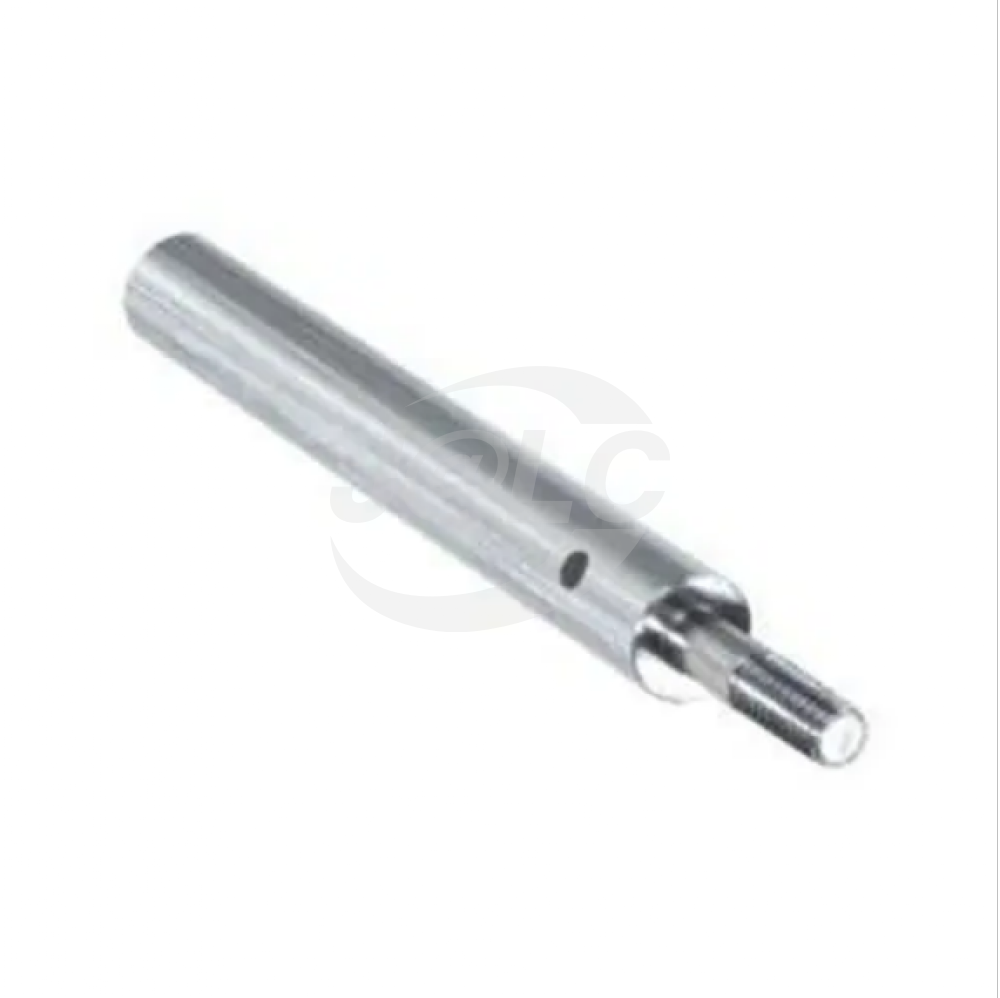

Linear Shaft - Solid, One End with External Thread and One End with Internal Thread, with Relief Groove and Wrench Flat/Through Hole, g6 Tolerance
Part Number:
From
$3. 6854
View your coupons >
Ships Within: 4 days or more
Ship to
Shipping Estimated: -
Product Specifications
Product Shape Selection |
One end external thread one end internal thread type
| Category |
Solid guide shaft
|
|---|---|---|---|
Type |
Standard type
| Shaft End Shape |
One End External thread, Other End Internal thread
|
Shaft Tolerance |
g6
| Left Shaft End Machining (Left) |
External Thread
|
Right Shaft End Machining (Right) |
Internal Thread
| ||
Drawing/Specifications
Details
3D Model
Part Numbers (2968)
