What Is a Photoelectric Sensor? From Working Principle to Sensors Selection

In industrial automation, accurate and reliable object detection is crucial for efficiency, safety, and minimizing downtime. Engineers face challenges like high-speed production, complex assembly, and changing environments. This article introduces what photoelectric sensors are , and covers their Main Types，Selection Criteria，and Application Scenarios.

What Is a Photoelectric Sensor

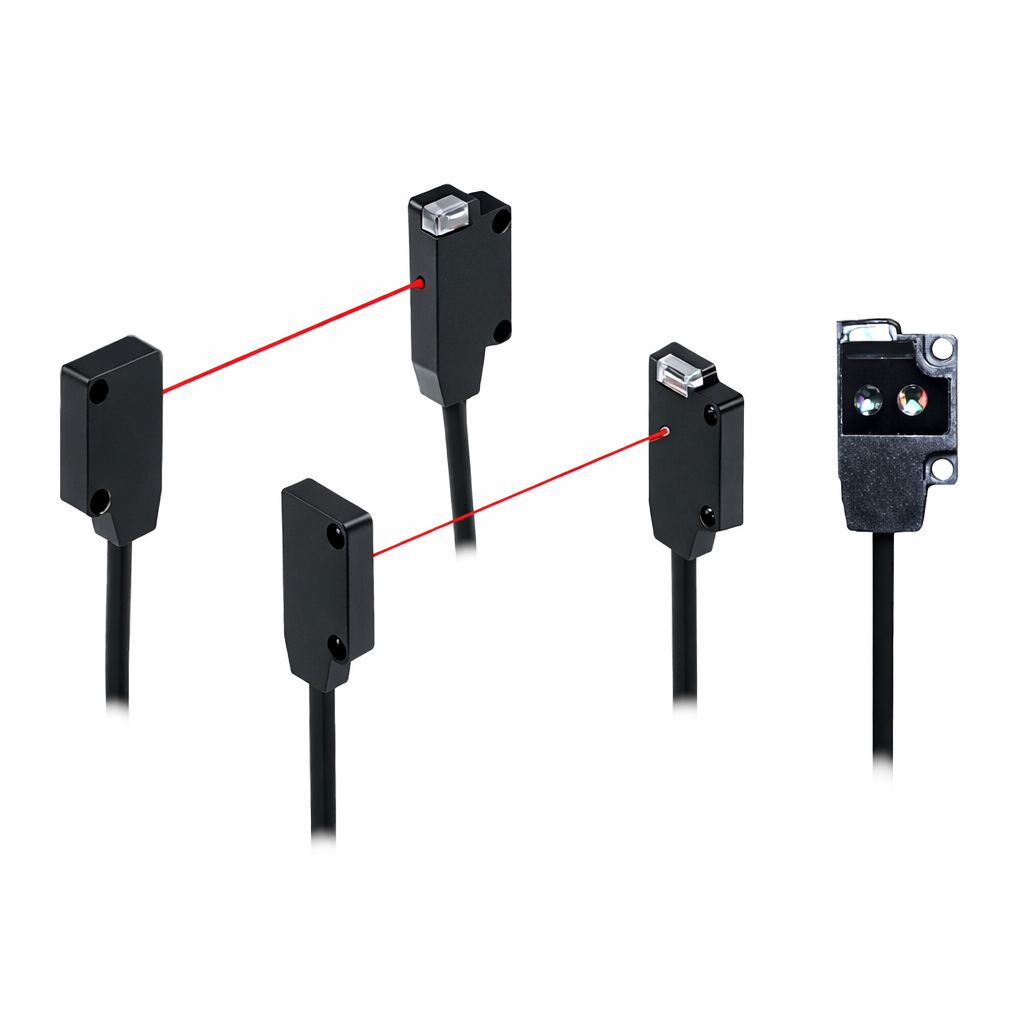

A photoelectric sensor is a non-contact detection device that detects the position, presence, or motion of target objects by emitting and receiving light beams. Its core advantages include:

• Non-contact detection: Eliminates mechanical wear and extends service life
• High response speed: Response times can reach millisecond or even microsecond levels
• Broad material compatibility: Detects metals, plastics, glass, wood, paper, and more

Flexible detection range: Covers distances from a few millimeters to tens of metersWorking Principle：

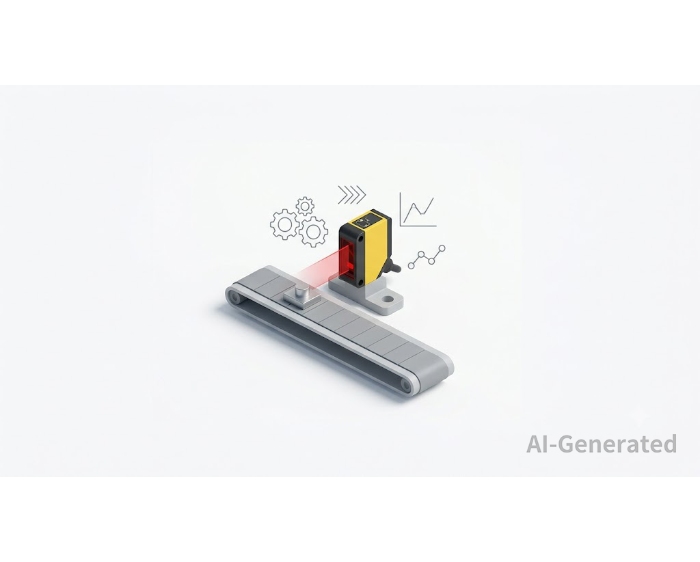

The operation of a photoelectric sensor follows a five-step process:

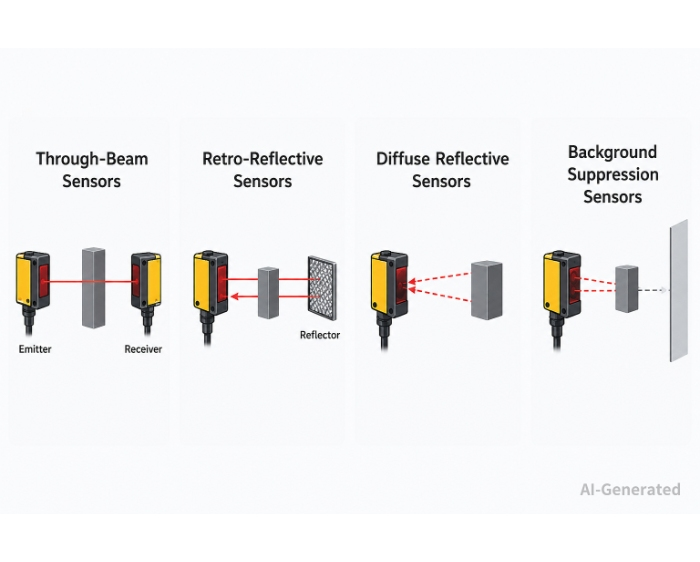

Main Types of Photoelectric Sensors

Based on detection principles and structural design, photoelectric sensors are classified into four main types, each with distinct characteristics in detection range, installation requirements, and application scenarios.

Through-Beam Sensors

Through-beam sensors have separate emitter and receiver units. Detection occurs when an object blocks the light beam. They offer the longest detection range (up to 30m+ ), strong resistance to ambient light, and high accuracy independent of object color. Installation requires precise alignment on both sides.
Applications: Conveyor product counting, large object detection, logistics sorting, multi-beam safety light curtains.

Retro-Reflective Sensors

Retro-reflective sensors integrate the emitter and receiver, using a reflector to return the light. Detection occurs when the reflection is interrupted. They are easy to install on one side, with ranges of 0.1–10m, but performance can be affected by dirty reflectors.
Applications: Packaging detection, automatic doors, medium-distance object detection.

Diffuse Reflective Sensors

Diffuse sensors rely on the target’s surface to reflect light back to the receiver. They are simple to install, cost-effective, and suitable for short-range detection, though color and surface reflectivity can affect performance.

Applications: Workpiece detection, product positioning, material level monitoring, general automation.

Background Suppression Sensors

Background suppression sensors use triangulation or Time-of-Flight to detect only targets within a set distance, filtering out background interference. They provide high stability, color-independent detection, and precision positioning, ideal for complex or dark surfaces.
Applications: Precision assembly, overlapping object detection, black/dark object detection, complex backgrounds.

Photoelectric Sensor Selection Criteria

Proper selection is critical to ensuring stable and reliable sensor performance in real-world applications. The following sections outline selection considerations across six key dimensions.

Selection Decision Flow

The photoelectric sensor selection process is a structured, top-down workflow that begins by defining the detection purpose—such as presence, position, counting, or measurement—and the required response speed. Next, the characteristics of the target object, including material, color, dimensions, and transparency, are analyzed to guide the choice of sensor type, whether Through-Beam, Retro-Reflective, Diffuse Reflective, or Background Suppression. The actual detection distance and available mounting space are then established, incorporating a 20%–30% safety margin. Environmental factors like temperature, humidity, dust, vibration, and ambient light are evaluated, followed by alignment of the sensor’s output interface (PNP, NPN, relay, or analog) with the PLC or controller. Appropriate protection ratings (IP54, IP65, IP67, or IP69K) are confirmed, and finally, all parameters are validated against manufacturer specifications to finalize the part selection.

Key Selection Parameters

The table below shows the key selection parameters for photoelectric sensors.

Typical Application Scenarios

Logistics and Warehouse Automation

In logistics and warehouse systems, photoelectric sensors are used for package detection, conveyor monitoring, automated sorting, and AGV navigation. They ensure accurate object positioning, detect blockages, and provide reliable triggering signals for automated material handling processes. Through-beam and retro-reflective sensors are the most common choices due to their long sensing range and stable performance.

Electronics Manufacturing

Photoelectric sensors play a key role in electronics manufacturing by detecting PCB positions, supporting SMT assembly, counting small components, and verifying assembly accuracy. They are also widely used in semiconductor production for wafer and chip positioning. Background suppression and laser photoelectric sensors are preferred for their high precision and detection stability.

Automotive Manufacturing

In automotive production, photoelectric sensors are used for vehicle body positioning, component presence verification, welding station detection, and robotic handling. They help improve automation accuracy and production efficiency while ensuring reliable process control. Through-beam and background suppression sensors are commonly selected for demanding automotive applications.

Quick Selection Reference Table：

FAQs

Q1: What Is the Difference Between Photoelectric Sensors and Proximity  Sensors ?

Proximity sensors mainly detect metal via electromagnetic induction, while photoelectric sensors use light to detect various materials with longer distances, faster response, and higher accuracy. Through-Beam and Background Suppression are ideal for long-distance or complex detection, and Retro-Reflective, Diffuse, Polarized, or Laser sensors suit specific applications.

Q2: Why Do Black Objects Often Cause Missed Detections?

Black surfaces absorb most light, greatly weakening the reflected signal; background suppression or laser sensors are recommended, standard diffuse reflective sensors should be avoided, and through-beam sensors can be used as a color-independent alternative.

Q3: Can Photoelectric Sensors Detect Transparent Objects?

Yes, photoelectric sensors can detect transparent objects, but specialized types are needed, such as polarized reflective sensors, transparent bottle sensors for PET or glass, and laser sensors that use high-directionality light for better detection.

Q4: How to Reduce False Detections in Photoelectric Sensors?

1. Selection Phase: Choose the appropriate type based on detection targets and environment
2. Installation Phase: Avoid positioning sensors directly facing strong light sources or highly reflective backgrounds
3. Commissioning Phase: Set sensitivity appropriately with adequate detection margin
4. Maintenance Phase: Regularly clean optical windows and reflectors

Q5: How to Choose Between NPN and PNP Outputs?

For PLC input types, sink input (current sinking) is typically paired with PNP sensors and is high-level active, while source input (current sourcing) is typically paired with NPN sensors and is low-level active. In terms of market convention, PNP is more widely used in Europe, whereas both NPN and PNP are commonly used in Asian markets.

Conclusion

Photoelectric sensors provide fast, reliable, and non-contact detection for a wide range of industrial automation applications. By understanding the characteristics of different sensor types and evaluating factors such as detection distance, target properties, environmental conditions, and output requirements, engineers can select the most suitable solution. Proper sensor selection not only improves detection accuracy and system reliability but also reduces downtime and maintenance costs over the long term.
