How to Drill Out a Stripped Screw Safely?

A stripped screw often turns a simple repair into a hard job. The driver slips because the screw recess no longer gives the bit a firm grip. A broken head or rusted screw creates a similar problem. Drilling screws out should come after simpler removal methods fail. Your goal is to remove enough metal to free the screw head without harm to the part.

Good control matters more than force. A drill bit that moves off center might damage the hole or nearby surface. Start with a small bit and keep the drill straight. Stop as soon as the screw head comes free.

When Should You Drill Out a Screw?

Stripped Drive, Broken Head, and Stop Points

Use a drill when the driver no longer grips the screw head. A badly stripped recess often gives the tool no firm contact, while a broken screw head leaves no normal drive surface. Rust might also hold the threads tight inside the hole. Try a less harsh removal method first if the head still has some grip.

A screw extractor or lock pliers might solve the problem without much metal removal. Stop if the screw sits close to wires or a sealed part. You should also stop if the screw forms part of a brake system or another safety part.

Poor access is another reason to seek expert help because a drill that sits at the wrong angle might harm the part.

Tools, Bit Choice, and Safety Prep

Eye Cover, Surface Guard, and Tool Choice

Wear safety glasses before you start because small metal chips might leave the hole at high speed. Secure any loose part so the drill stays stable. Place tape around a finished surface if a bit slip might leave marks. A thin guard also helps protect nearby areas.

Use a center punch to make a small mark in the middle of the screw head. This mark gives the bit a clear starting point. Start with a small drill bit. High-speed steel suits many common steel screws, while cobalt suits harder steel and deals with heat better.

A left-hand drill bit cuts while the drill runs in reverse, and the drilling process can loosen the screw as the bit cuts. If the screw remains stuck, you can use a matching screw extractor to help. First drill the pilot hole at the size and depth specified by the extractor maker, then follow the recommended extraction procedure. Match the extractor size to the maker's size guide. Do not choose a tool by guesswork.

How to Drill Out the Screw Head

Mark the Center and Start Small

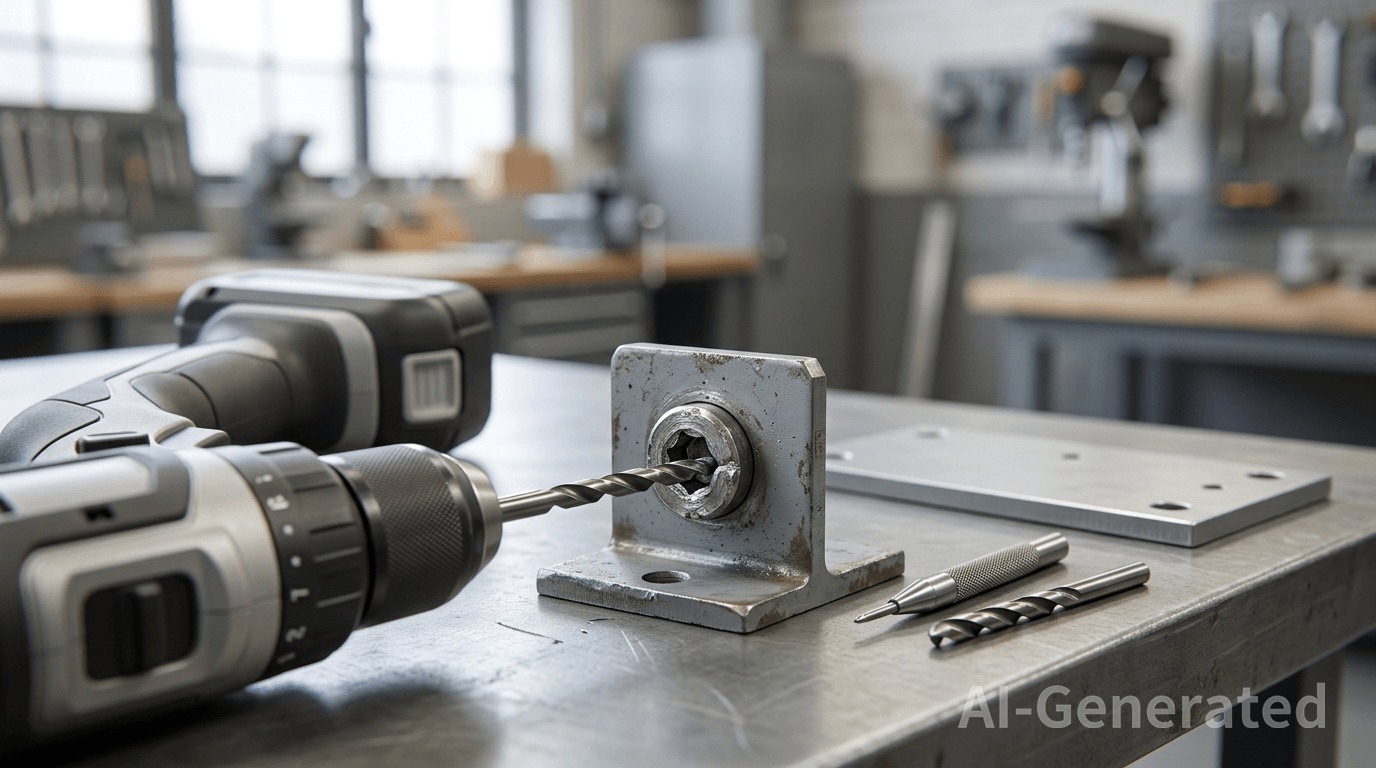

Place the center punch in the middle of the screw head and tap it with light force. Set the drill bit inside the mark. Keep the drill in line with the screw shank and start at low speed. Let the bit cut the metal without hard pressure.

Too much force might bend the bit or push the tip away from the center. Stop if the drill starts to move sideways. Choose the bit based on the removal method. If you plan to drill out the screw head, start with a small bit and enlarge the hole in steps while keeping it centered. If you plan to use a screw extractor, follow the extractor maker's recommended bit diameter and drilling depth. Check the hole after a short cut to make sure it stays close to the center.

Move to a larger bit only when you need more material removed. Your aim is to remove the screw head without damage to the part around it. When drilling screws out, stop once the head separates from the shank. Remove the loose head and lift the attached part away.

Do not keep the drill on the screw after the head comes free unless the next repair step needs a deeper hole. Extra drill depth raises the risk of harm below the screw. A slow and controlled approach gives you more room to correct a small error.

Once the damaged screw is removed, choosing a replacement with the correct thread size, length, and head style helps ensure a proper fit. Explore JLCMC screws to find a suitable fastener for your repair.

How to Remove the Screw Stud

Pliers, Extractor, and Heat Limits

After head removal, part of the screw might sit above the surface. Grip this stud with lock pliers and turn it in the normal removal direction. Use slow and steady force rather than a sharp twist. Too much force might snap the stud closer to the surface.

If the stud sits flush, use the pilot hole for a screw extractor. Follow the extractor maker's size guide. Rust often makes removal harder, so a suitable rust release fluid might help loosen some metal fasteners. Give the product enough time to reach the thread area as its label directs.

Heat needs much more care. Do not use heat near fuel or wires, and keep it away from plastic parts or seals. Skip heat if you do not know the material around the screw. Another removal method gives you a safer choice in this case.

Inspect and Repair the Female Thread

Clean, Check, and Repair

After screw removal, clear loose metal chips from the hole. Use a brush or another safe clean-up method for the part. Look at the female thread inside the hole and check its shape. A thread chaser can remove debris and help restore lightly damaged threads, but it cannot reliably repair missing or severely damaged thread profiles. If the original thread is significantly damaged, assess whether re-tapping, a thread insert, or another suitable repair is needed.

Major thread damage needs a more involved repair. A thread insert often restores a hole after loss of the old thread. Follow the insert maker's size guide and do not force an insert into the wrong hole size. If the drill hole sits far from the center, a machine shop has better tools for accurate repair.

After drilling screws out, your main aim is to protect the base part. Do not force a new screw into damaged threads. Check the thread first and confirm that the new screw enters straight. Stop if you feel strong resistance at the start.

Material and Part Risks

Thin Sheet and Soft Metal

Thin sheet gives you little depth before the bit passes through. A drill stop helps limit bit depth where the tool setup allows. Check what sits behind the sheet before you start because the bit might reach a hidden part as soon as the screw head gives way. Soft materials also need less pressure than hard steel.

Aluminum needs light pressure because a drill bit cuts soft metal faster than hard steel. Plastic needs extra care because drill heat might deform the hole. Use low speed and short tool contact with soft materials. Stop if the area starts to deform.

Metal chips create a risk around electronics. Keep chips away from circuit boards and open ports. Parts with seals also need care because small chips might enter a seal area and cause wear later. Protect paint or a polished face before you start.

Common Errors to Avoid

People often start with a drill bit that is too large. A large bit leaves less room for a small error. High drill speed also creates more heat and gives you less control at the start. Begin with a smaller bit and move up only when the job needs it.

A drill held at an angle might cut into the female thread. Keep the bit in line with the screw shank. Do not keep working on a dull bit because a worn edge needs more force and creates extra heat. Replace the bit if its edge no longer cuts well.

Stop once the screw head comes free. Extra drill depth raises the risk of damage below the screw. For drilling screws out, center position matters more than speed. A slow start gives you better control over the bit.

Frequently Asked Questions

What drill bit material should you use?

High-speed steel suits many common screws. Cobalt works better on harder steel.

Should the bit be smaller than the screw shank?

Yes, for the first hole when you drill out the screw head. A smaller bit gives you more control and helps protect the female thread. For a screw extractor, use the bit diameter the extractor maker recommends.

When is expert repair safer?

Use expert help near safety parts or costly parts. Expert repair also makes sense if the drill hole moves far off center.

Remove the Screw With Less Risk

A stripped screw does not always need a drill first. Try the least harmful removal method before you cut metal from the screw. If you need a drill, mark the center and start with a small bit. Keep the tool straight and use low speed.

Stop after the head comes free, then remove the stud with lock pliers or the correct extractor. Check the female thread before you fit a new screw. A clean and intact thread gives the replacement screw a better fit.

If the original threads are too damaged for reuse, a suitable thread insert may offer a repair option when the base material and hole condition allow it. Explore JLCMC thread inserts to identify a compatible solution for your fastening needs.
