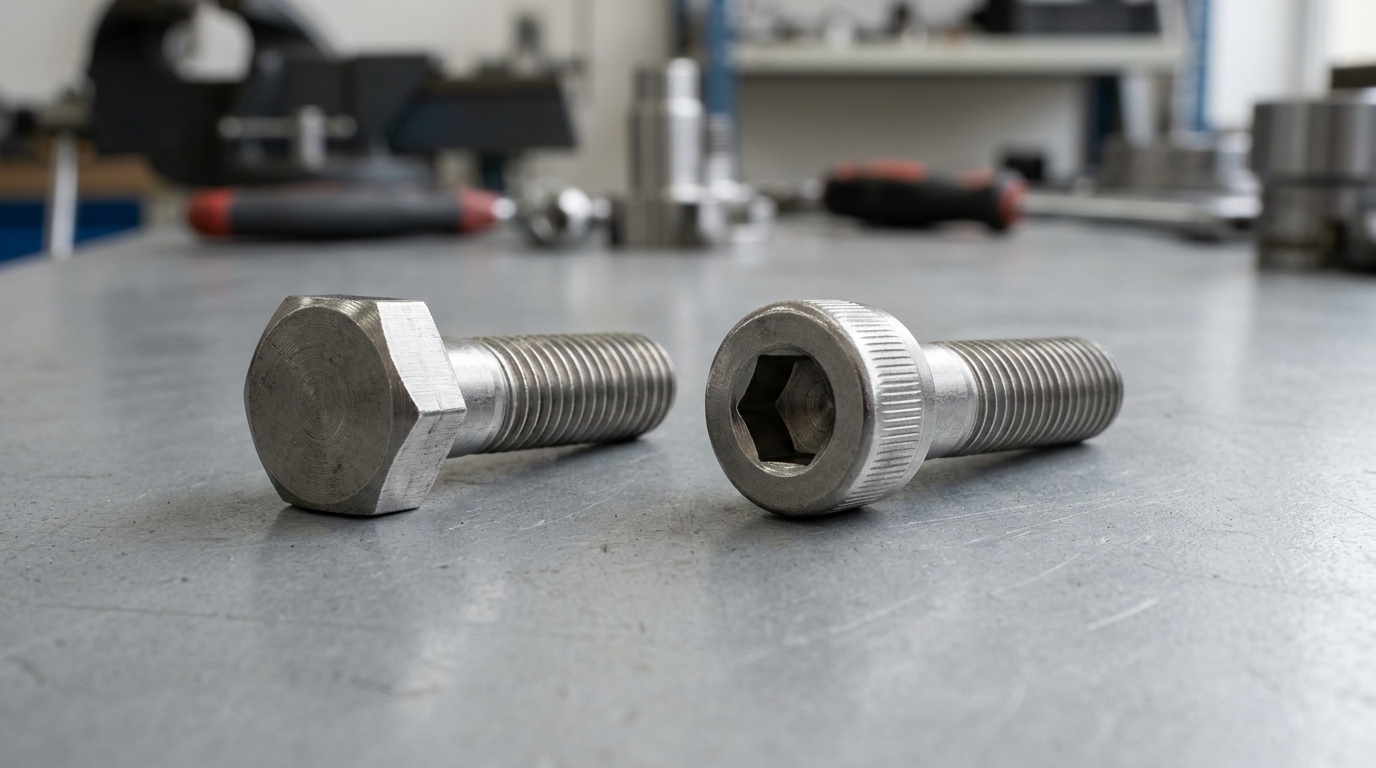

If you ask what is a hex screw, the answer depends on the type of drive. Some people use the term for a screw with an outer six-sided head. Others use it for a screw with a six-sided recess inside the head. Both forms use a hex shape, but the tool sits in a different place.
An external hex head works with a wrench or socket. An internal hex socket works with a hex key, also called an Allen key. The right term depends on the fastener standard and the product name used by the maker.

Hex Screw Definition and the Two Common Meanings
External Hexagon Head Screws
A hex-head screw has a six-sided outer head. You place a wrench or socket around the head to turn it. This shape gives the tool broad contact with the fastener.
If you ask what a hex-head screw is, this is what people usually mean. The head has six flat sides, and the shank sits below it. The screw might have full thread or partial thread, based on its design.
Internal Hex Socket Screws
An internal hex screw has a six-sided recess inside the head. You use a hex key or hex bit to turn it. Socket head cap screws are a common example.
People sometimes call this an Allen screw. That name refers to the internal hex drive, not one single head style. Button-head and flat-head screws also use internal hex drives.
What Does a Hex Screw Look Like?
If you wonder what a hex screw looks like, start with the drive shape. An external hex fastener has six flat outer sides. An internal hex fastener has a six-sided recess in the center of the head.
The shank runs below the head and carries the thread. Some screws have thread along most of the shank, while others leave part of the shank smooth. Head size and thread length vary between product types.
For what a hex head screw looks like, picture a bolt-style head with six flat sides. A socket fits over the outside of the head. The top face usually looks flat, although exact head form depends on the standard.
Hex Screw vs Hex Bolt vs Hex Cap Screw
The terms screw and bolt do not always have one universal meaning across all standards. Some product ranges use "hex screw" for a fully threaded hex-head fastener. Others use "hex bolt" for a similar fastener with part of the shank left smooth.
It usually means a threaded fastener with an external six-sided head. People often use it with a nut or with a threaded hole. The exact form still depends on the product standard.
A hex cap screw is another closely related fastener. A hex cap screw is a precision hex-head screw made to a set dimensional standard. Depending on the applicable standard, it may have dimensional and tolerance requirements that differ from those of a hex bolt. Check the product specification rather than relying on the name alone.
The phrase what is a hex head cap screw refers to the same basic family. It has an external hex head and a threaded shank. The exact thread length and dimensions depend on the standard.
What Are Hex Screws Used For?
If you ask what are hex screws used for, the answer covers many mechanical joints. People use them in machines, frames, brackets, and equipment covers. They also suit jobs where the fastener must come apart for service.
External hex heads work well where a wrench or socket has clear access. Internal hex sockets suit areas where there is less space around the outside of the head. The tool enters the center, so side clearance is less important.
What is a hex bolt used for? Common uses include structural joints and machine parts. It also suits brackets or fixtures where the joint needs firm clamp force. The exact load limit depends on size and strength class.
Common Hex Fastener Families
Hex-Head Screws
Hex-head screws have an external six-sided head. A socket or wrench turns the fastener. You see this style in many general mechanical jobs.
Hexagon Bolts
Hexagon bolts also have an external hex head. Some versions have a smooth shank section below the head. People often pair them with nuts.
Socket Head Cap Screws
Socket head cap screws use an internal hex recess. Their round outer head gives strong tool contact through the center recess. They often appear in machine work.
Button and Flat Socket Screws
Button-head socket screws have a low rounded head. Flat socket screws sit inside a countersunk hole so the top stays close to the surface.
Set Screws
Set screws often have no large outer head. Many use an internal hex socket. They hold one part against another, such as a collar on a shaft.
What Is a Hex Head?
If you ask what a hex head is, it simply means a head with six flat outer sides. This form gives a wrench or socket several contact faces. The tool surrounds the head instead of entering a recess.
A hex head does not tell you the full fastener type. You still need to check thread form and shank length. Material and strength class also matter.
How to Choose the Right Hex Screw
Start with tool access. If you have room around the head, an external hex style works well with a wrench or socket. If side space is tight, an internal hex socket might fit the job better.
Next, check thread size and thread depth. The screw needs enough thread contact inside the nut or threaded hole. Length also matters because the fastener should pass through the joint without excess exposed thread, where that causes a problem.
Check the strength class before use in a loaded joint. Material and finish also matter. Stainless steel suits many wet areas, while coated carbon steel suits many general jobs.
For hex-head screw selection, head style is only one part of the choice. You should also match the fastener to the joint load and material.
Common Mistakes
People often confuse hex-head fasteners with internal hex socket screws. The easiest check is tool position. If the tool goes around the head, it is an external hex form. If the tool enters the head, it is an internal hex drive.
Another mistake comes from using a loose wrench or key. Poor tool fit rounds the head or recess. Always use the correct size before you apply strong force.
Do not assume every hex bolt needs a nut. Some fasteners enter a threaded hole directly. The joint design decides whether a nut is part of the assembly.
Frequently Asked Questions
Is a hex screw the same as an Allen screw?
Not always. Allen usually refers to an internal hex drive. A hex screw might also have an external hex head.
What is a hex head cap screw?
It is a threaded fastener with an external six-sided head. Its exact dimensions follow the product standard.
Does a hex screw always use a nut?
No. Some hex screws enter a threaded hole instead. Others work with a nut.
Choose the Correct Hex Fastener
A hex screw uses a six-sided tool interface, either outside the head or inside it. The exact fastener name depends on head style and thread form. People should check the product standard before treating similar-looking fasteners the same.
When you choose one, look at tool access first. Then check thread size and length. A correct fit gives the tool firm contact and helps the joint work as intended. Explore JLCMC's hex screws to find reliable fastening solutions that match your application requirements.
