Blind Rivet Guide: Types, Sizes, Uses, Installation and Removal

A blind rivet may be small, but choosing one correctly involves more than matching a rivet to the nearest drill bit.

The diameter, grip range, hole size, body material, mandrel material, head style and installation tool all influence the finished joint. A rivet that looks perfectly acceptable before installation can still spin, loosen, pull through the sheet or form incorrectly on the blind side if one of these factors is overlooked.

Blind rivets are widely used in sheet-metal fabrication, electrical enclosures, machine guards, equipment covers, ventilation panels, vehicle bodies and compact mechatronic assemblies. Their main advantage is that they can be installed when only one side of the workpiece is accessible.

This guide explains what a blind rivet is, how it works, how it differs from a pop rivet, which types and materials are available, how to select the correct size and grip range, and how to install or remove one properly.

1. What Is a Blind Rivet?

A blind rivet is a permanent mechanical fastener used to join two or more layers of material from one side of an assembly.

Unlike a solid rivet, which usually requires access to both sides during installation, a blind rivet can be inserted and set entirely from the accessible side. This makes it especially useful for hollow sections, enclosed housings, folded sheet-metal structures and equipment panels where the rear of the joint cannot be reached.

A typical blind rivet consists of two main components:

· A hollow rivet body

· A mandrel running through the body

During installation, the rivet body is placed through a prepared hole. A riveting tool pulls the mandrel toward the operator, causing the blind end of the body to expand and form a second head behind the material.

Once the tensile load on the mandrel reaches its designed breaking load, the mandrel snaps at the breakneck point. The materials are then clamped between the factory-formed head on the front and the newly formed closing head on the rear.

Blind rivets are normally considered permanent fasteners. They can be removed, but they are not designed to be loosened and reused like screws.

They are commonly found in:

· Sheet-metal cabinets

· Machine covers

· Electrical enclosures

· Ventilation systems

· Sensor housings

· Appliances

· Vehicle panels

· Light structural assemblies

2. Is a Blind Rivet the Same as a Pop Rivet?

In most everyday engineering, purchasing and DIY contexts, the terms blind rivet and pop rivet refer to the same type of mandrel-style fastener.

However, there is a technical distinction.

Blind rivet is the generic name for the fastener category. POP® originated as a brand name associated with blind riveting products. Over time, the term “pop rivet” became widely used as an informal name for blind rivets in general.

A simple way to understand the relationship is:

A POP rivet is a blind rivet, but a blind rivet is not necessarily a POP-branded rivet.

For technical drawings, specifications and bills of materials, “blind rivet” is normally the better generic term unless a particular brand or product series is required.

For search and everyday communication, both terms remain useful. Someone looking for a pop rivet gun is usually searching for the same type of tool used to install a standard blind rivet.

Throughout this guide, blind rivet is used as the main term, while pop rivet is included where it reflects common usage.

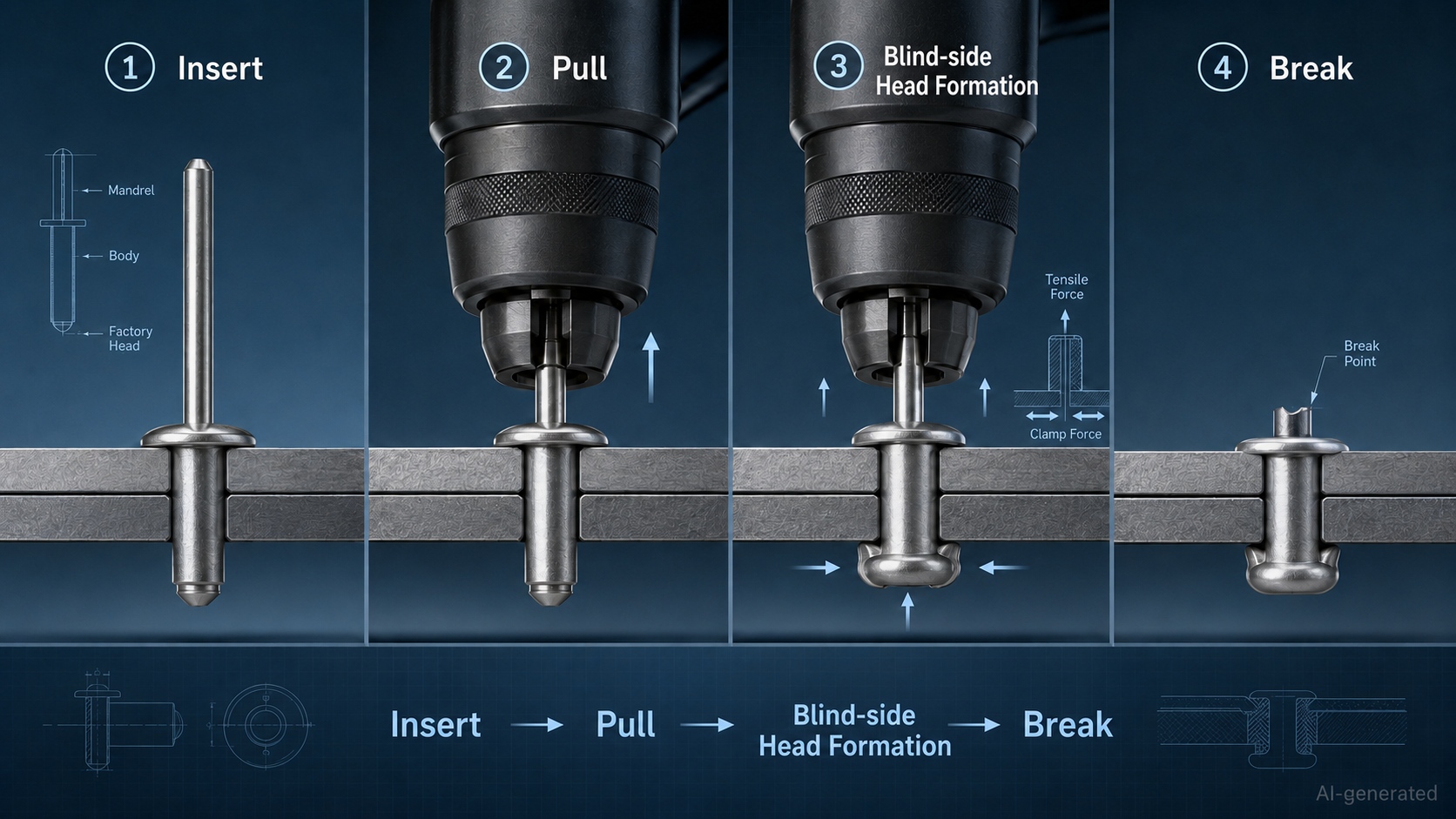

3. How Does a Blind Rivet Work?

The blind riveting process can be summarized in four stages:

Insert → Pull → Expand → Break

Insert

The rivet body is pushed through aligned holes in the materials being joined. The factory head remains against the accessible surface.

Pull

The mandrel is inserted into the nosepiece of a riveting tool. The tool grips the mandrel and pulls it toward the operator.

Expand

As the mandrel moves, its enlarged head presses against the blind end of the rivet body. This causes the body to shorten, expand and form a closing head behind the workpiece.

The materials are clamped between the factory head and the blind-side closing head.

Break

Once the tensile load on the mandrel reaches its designed breaking load, the mandrel snaps at the breakneck point (a machined weak section that controls where the mandrel separates). The detached portion is removed through the tool.

The familiar snapping sound marks the mandrel breaking, but it does not automatically confirm that the joint is correct. The rivet may still be under-set, misaligned or outside its specified grip range.

A completed blind rivet joint should have:

· A factory head sitting flat against the material

· No visible gap between the joined parts

· A properly formed blind-side head

· No spinning or looseness

· No excessive deformation around the hole

Tool alignment is particularly important. If the rivet gun is held at an angle, the body may deform unevenly and the mandrel may break abnormally.

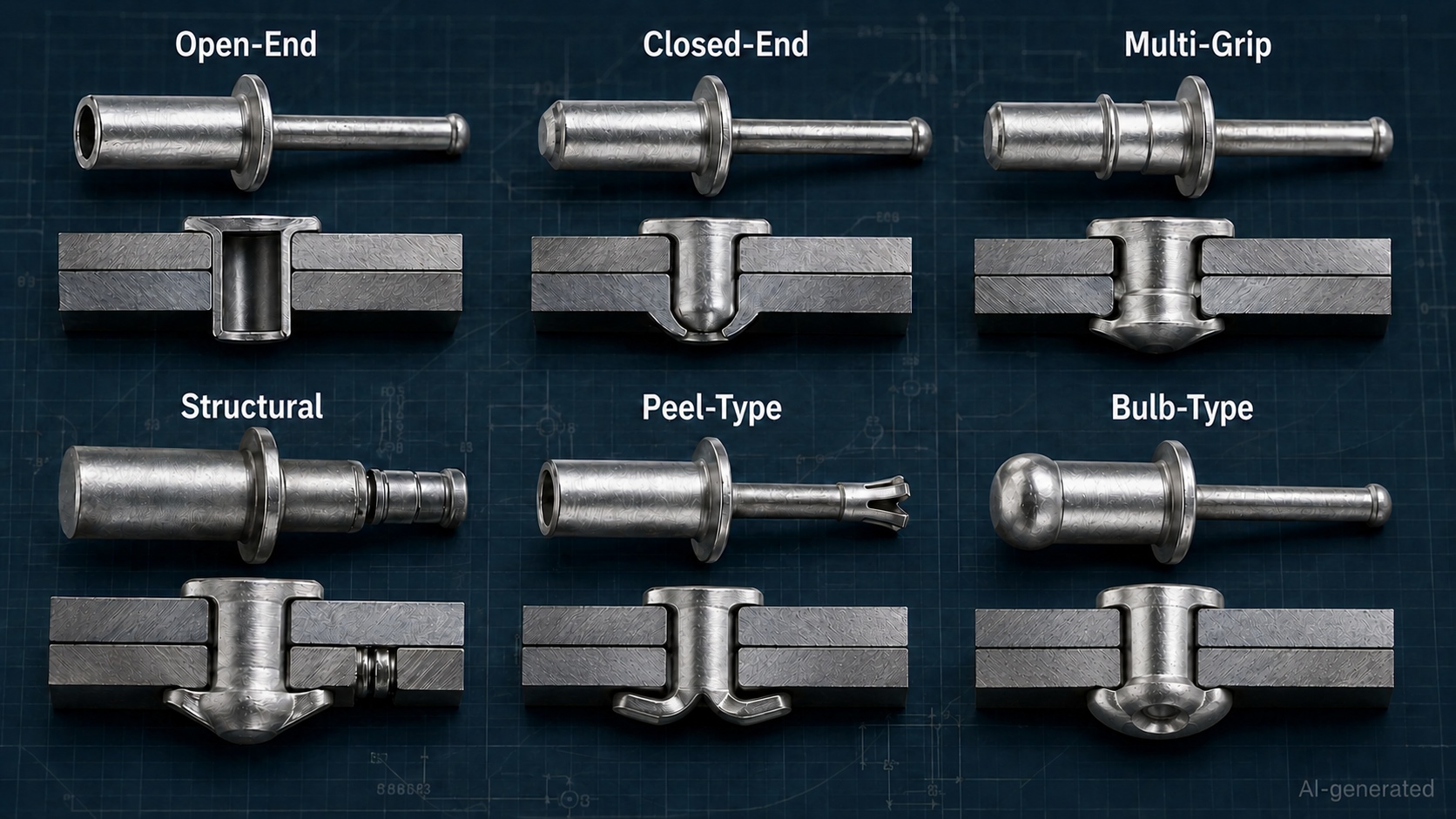

4. Common Blind Rivet Types and Head Styles

Blind rivets are available in several body designs and head styles. These two features should be evaluated separately.

Open-End Blind Rivet

The open-end blind rivet is the most common general-purpose design.

It is economical, widely available and suitable for many light- and medium-duty sheet-metal assemblies. Typical applications include machine covers, brackets, control cabinets, ducts and equipment housings.

Because the body remains open at the blind end, a standard open-end blind rivet should not automatically be considered waterproof or airtight.

Closed-End Blind Rivet

A closed-end blind rivet has a sealed body at the blind end.

It can provide better resistance to moisture, dust and fluid passage than an open-end design.However, the rivet itself does not guarantee a waterproof joint. Leakage can still occur between the rivet body and the hole wall or around the head interface. If sealing is critical, sealant or sealing washers should be considered.

The entire joint still needs to be evaluated. A closed rivet body cannot compensate for a damaged surface, oversized hole or poorly seated head.

Multi-Grip Blind Rivet

A multi-grip blind rivet can accommodate a wider range of material thicknesses.

This is useful when several sheet combinations are used in production or when reducing the number of stored rivet lengths is important. Multi-grip designs may also provide improved hole filling.

They are flexible, but not magical. The total material thickness must still fall within the manufacturer’s specified range.

Structural Blind Rivet

Structural blind rivets are designed for more demanding loads than standard general-purpose rivets.

Depending on their construction, they may provide:

· Higher tensile strength

· Higher shear strength

· Better hole filling

· Stronger mandrel retention

· Improved vibration resistance

· More consistent joint performance

They are commonly considered for industrial machinery, transport equipment and loaded sheet-metal structures.

Peel and Load-Spreading Rivets

Peel rivets split into several legs on the blind side during installation. Bulb-type and load-spreading rivets create a broad rear bearing area.

These designs are useful for softer or thinner materials such as:

· Plastic

· Composite panels

· Fiberboard

· Wood-based materials

· Thin aluminum sheet

They help reduce the risk of the rivet pulling through the material.

Dome Head

The dome or round head is the standard general-purpose head style. It provides a practical balance between contact area, head height and cost.

Large-Flange Head

A large-flange head distributes load over a wider front-side area.

It is often used with thin sheet, plastic, composites or slightly oversized holes. The larger bearing surface helps reduce local deformation.

Countersunk Head

A countersunk head sits close to flush with the workpiece surface.

It is suitable when a smooth exterior, sliding clearance or low profile is required. The hole must be prepared with the correct countersink geometry. Installing a countersunk rivet into an ordinary straight hole may result in poor seating.

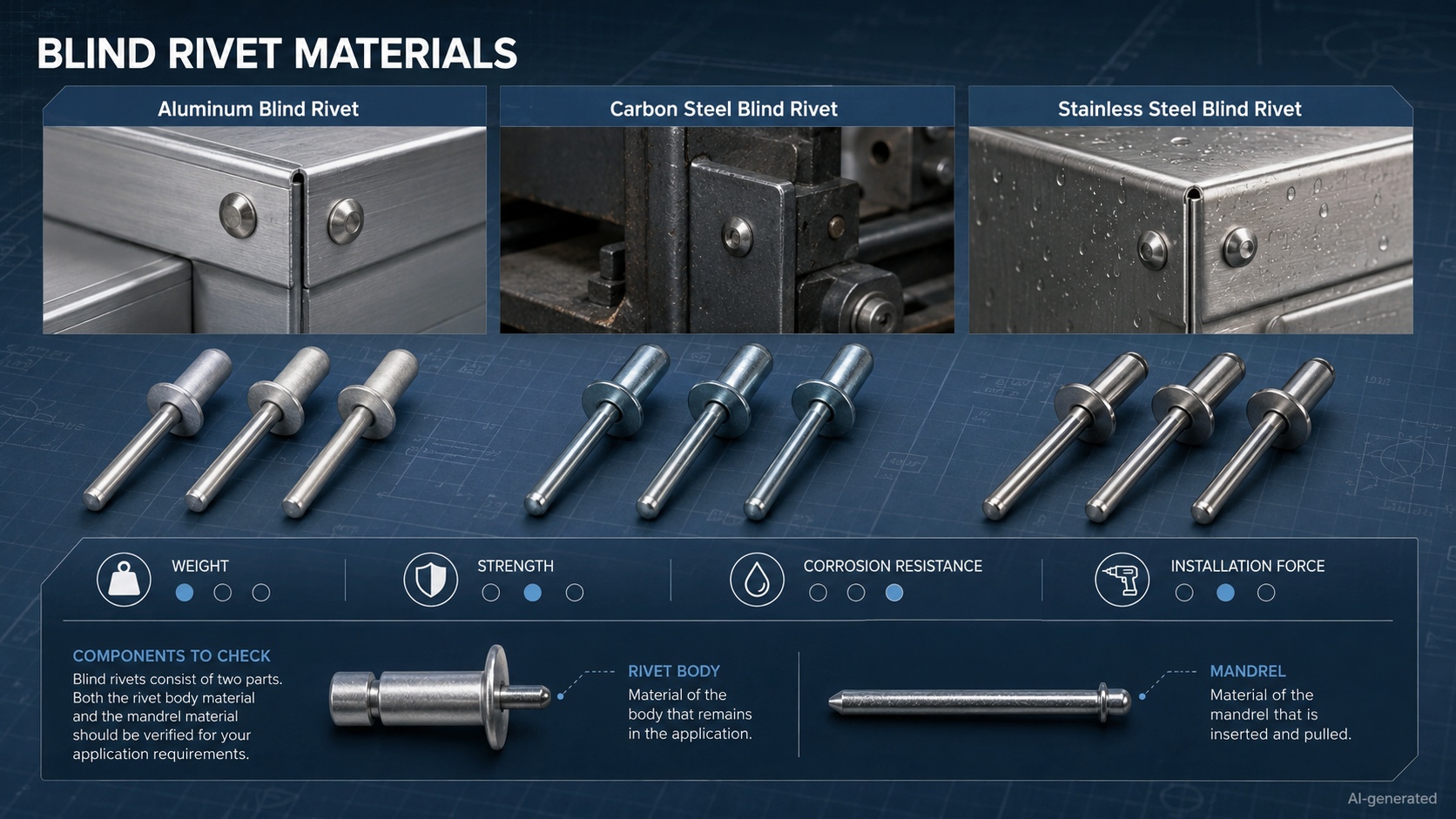

5. Blind Rivet Materials

A blind rivet should be identified by both its body material and mandrel material.

Common combinations include:

· Aluminum body with steel mandrel

· Aluminum body with aluminum mandrel

· Steel body with steel mandrel

· Stainless steel body with stainless steel mandrel

Two rivets with the same diameter and length may perform very differently if their material combinations are different.

Aluminum Blind Rivet

Aluminum blind rivets are lightweight, relatively easy to install and resistant to corrosion in many ordinary environments.

They are commonly used in:

·Aluminum sheet assemblies

· Electronic housings

· Signs

· Light equipment covers

· Appliances

· Ventilation panels

Aluminum usually requires less pulling force than steel or stainless steel, making it suitable for manual tools and thinner materials.

Its main limitation is lower mechanical strength compared with many steel and stainless steel options of the same size.

Steel Blind Rivet

Steel blind rivets generally provide higher strength than standard aluminum rivets.

They are frequently used in machinery, steel enclosures, brackets, guards and industrial sheet-metal assemblies. They also tend to be cost-effective where higher load capacity is required.

Carbon steel requires suitable corrosion protection. Zinc plating and other coatings can improve corrosion resistance, but they should still be evaluated against the actual environment.

Stainless Steel Blind Rivet

Stainless steel blind rivets combine high strength with good corrosion resistance.

They are commonly selected for:

· Outdoor equipment

· Food-processing machinery

· Humid environments

· Stainless steel enclosures

· Washdown applications

· Marine-adjacent equipment

They usually require more installation force. A manual riveter that handles a small aluminum rivet easily may not be suitable for a larger stainless steel product.

Copper Blind Rivet

Copper blind rivets may be selected for material compatibility, appearance or applications where copper components are involved.

They are found in specialist electrical, decorative and industrial applications.

Material Compatibility

The strongest available material is not always the correct material.

When different metals are placed in contact and exposed to moisture, galvanic corrosion may occur. For example, a stainless steel rivet installed in an aluminum panel may require additional protection in wet or salty environments.

Selection should consider:

· Base material

· Rivet body material

· Mandrel material

· Coatings

· Moisture exposure

· Temperature

· Salt or chemical exposure

· Expected service life

A dedicated comparison of aluminum, steel and stainless steel blind rivets can explore these material combinations in greater detail.

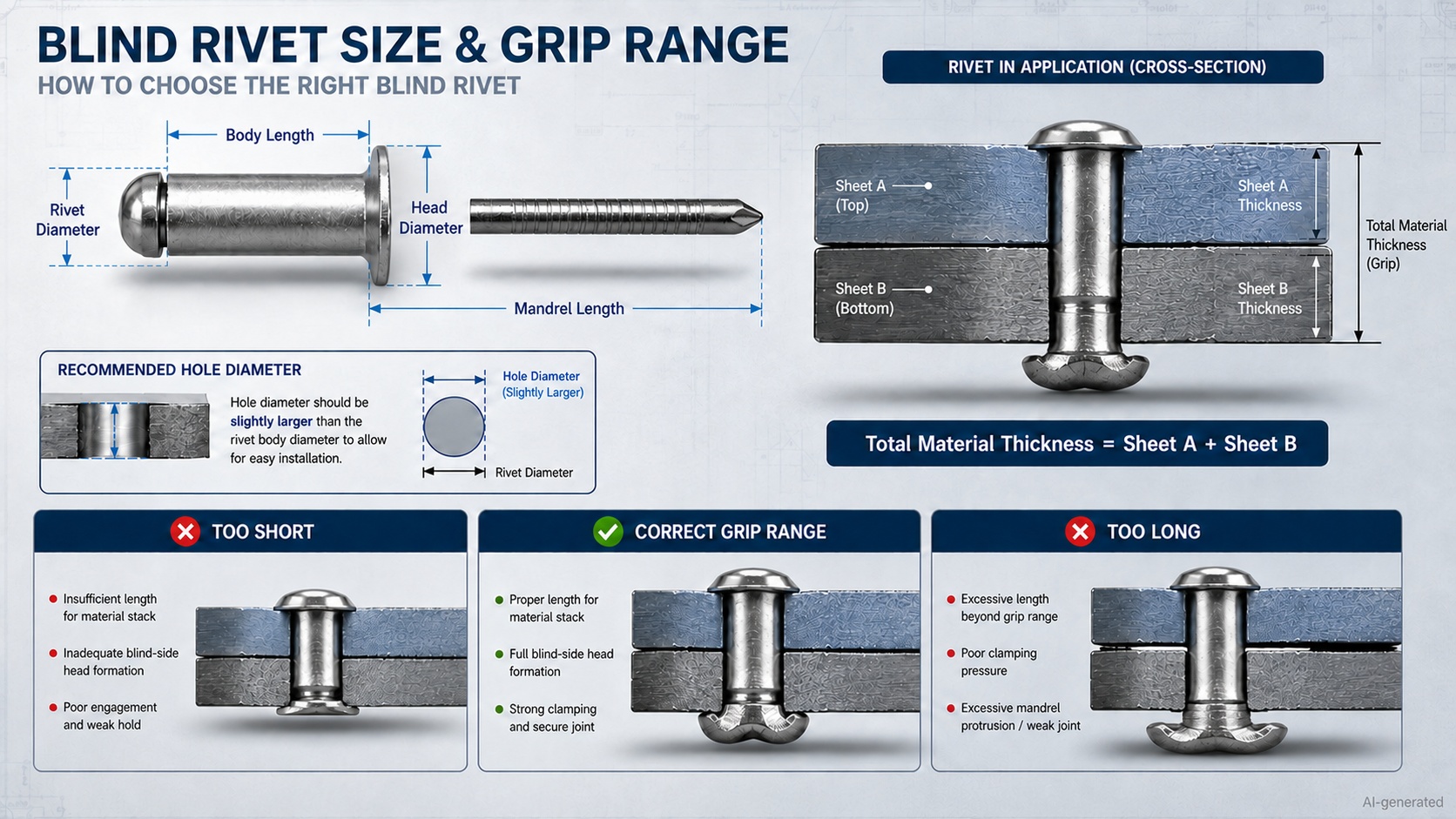

6. Blind Rivet Size and Grip Range

Correct sizing is one of the most important parts of blind rivet selection.

The four main parameters are rivet diameter, body length, grip range and hole diameter.

Rivet Diameter

The nominal diameter refers to the outside diameter of the rivet body.

Diameter affects:

· Hole size

· Tensile strength

· Shear strength

· Bearing pressure

· Edge distance

· Tool requirements

A larger rivet may provide more strength, but it also requires a larger hole. In narrow brackets or thin sheet, increasing the hole diameter may weaken the surrounding material.

Body Length

Body length is generally measured from beneath the factory head to the end of the rivet body.

The projecting mandrel is not included.

Body length and grip range are related, but they are not the same. Rivets with similar body lengths can have different usable grip ranges because of differences in body design.

Grip Range

Grip range is the total material thickness that the rivet can clamp correctly.

Some product specifications use the term riveting range. In practical selection, both describe the acceptable combined thickness of the joined materials.

For example, if two sheets are 1.2 mm and 2.0 mm thick, the total joint thickness is:

1.2 mm + 2.0 mm = 3.2 mm

The selected rivet must include 3.2 mm within its specified grip range.

Do not select the rivet using only the thickness of the top sheet.

A rivet that is too short may fail to form a proper closing head. A rivet that is too long may produce weak clamping, excessive blind-side projection or unstable deformation.

Hole Diameter

The prepared hole is usually slightly larger than the nominal rivet diameter.

However, it should not be unnecessarily large. An oversized hole may lead to:

· Rivet spinning

· Poor alignment

· Reduced hole filling

· Joint movement

· Inconsistent setting

· Visible gaps around the head

The correct hole diameter should always come from the relevant product specification.

JLCMC blind rivet specifications may list parameters such as:

· Hole diameter

· Riveting range

· Minimum tensile load

· Minimum shear load

These values are more reliable than choosing a rivet by visual similarity alone.

7. How to Choose the Right Blind Rivet

A practical selection process can be completed in eight steps.

Step 1: Identify the Materials

Confirm whether the joint includes steel, stainless steel, aluminum, plastic, composite material or a combination of different materials.

The workpiece material affects strength, corrosion, installation force and load distribution.

Step 2: Measure the Total Joint Thickness

Add the thickness of every layer through which the rivet passes.

Include brackets, overlapping sheet edges, spacers, coatings or gaskets if they form part of the clamped stack.

Step 3: Select the Grip Range

Choose a rivet whose grip range includes the total joint thickness.

The total thickness should not sit outside the published range, even if the rivet appears long enough.

Step 4: Determine the Load Direction

Consider whether the joint will experience:

· Shear

· Tension

· Peel

· Vibration

· Impact

· Fatigue

Shear load acts across the rivet body, while tensile load tries to pull the joint apart along the rivet axis.

Use documented load values rather than assuming that all rivets of the same diameter provide the same performance.

Step 5: Choose the Material Combination

Balance strength, corrosion resistance, weight, installation force and compatibility with the base material.

Step 6: Choose the Head Style

Use a dome head for general applications, a large flange for better load spreading or a countersunk head where a flush surface is required.

Step 7: Check the Hole and Blind-Side Clearance

Verify:

· Hole diameter

· Hole alignment

· Burr condition

· Distance from edges

· Space behind the joint

· Clearance from wiring or internal parts

Although installation requires access from only one side, the rivet still needs enough rear space to form its closing head.

Step 8: Match the Installation Tool

Confirm that the rivet gun supports the selected:

· Diameter

· Material

· Mandrel size

· Pulling force

· Nosepiece

Small aluminum rivets may be suitable for a manual hand tool. Larger steel and stainless steel rivets may require a battery, pneumatic or hydro-pneumatic riveter.

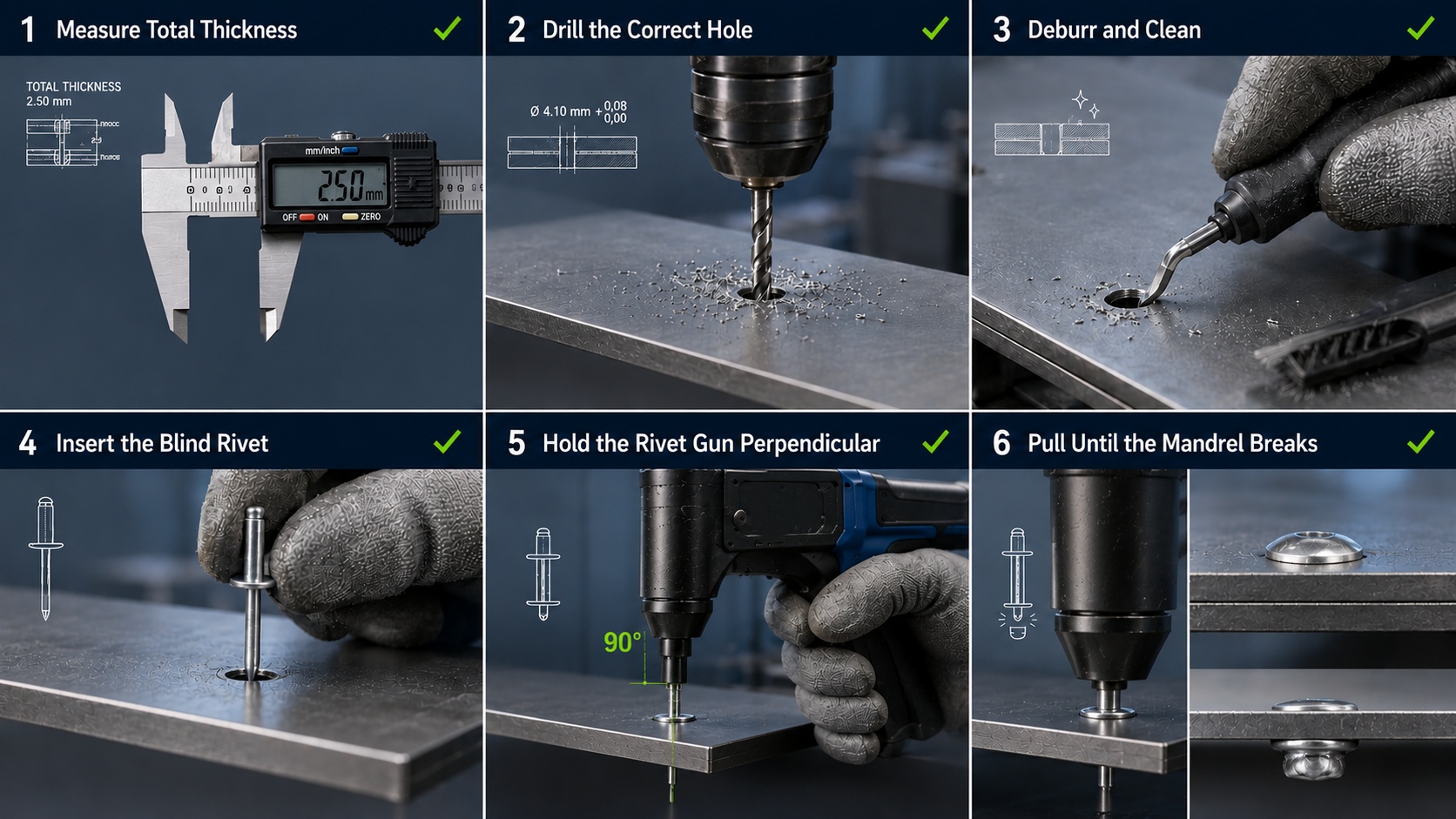

8. How to Use Blind Rivets

The following process covers how to use blind rivets with a standard manual or powered rivet gun.

Prepare the Tools

You will need:

· Blind rivets

· A compatible rivet gun

· The correct nosepiece

· Drill and drill bit

· Deburring tool

· Measuring tool

· Clamps

· Eye protection

Measure the Joint

Measure the complete material stack and confirm that the thickness falls within the selected grip range.

Mark and Prepare the Hole

Mark the hole position accurately.

Check that the hole is far enough from the material edge and does not interfere with nearby bends, screws or components.

Drill or punch the hole to the diameter specified for the rivet. Keep the drill perpendicular to the workpiece.

Deburr and Clean

Remove burrs and clear away chips, oil and loose coating fragments.

Burrs trapped between the joined sheets can relax after installation and reduce joint tightness.

Align the Materials

Bring the parts into full contact and clamp them if necessary.

A blind rivet can secure aligned panels, but it should not be expected to straighten badly distorted parts.

Insert the Rivet

Push the body through the prepared hole until the underside of the factory head sits against the surface.

Position the Rivet Gun

Insert the mandrel into the nosepiece.

Hold the tool perpendicular to the workpiece and press the nosepiece firmly against the rivet head.

Set the Rivet

Operate the tool until the mandrel breaks.

A manual tool may require more than one handle movement. Battery and pneumatic tools usually complete the cycle in one pull.

Inspect the Joint

Check that:

· The factory head sits flat

· The materials are tightly clamped

· The rivet does not spin

· The sheet is not cracked or deeply dented

· The mandrel has broken normally

· The blind-side head has formed correctly

The snapping sound is satisfying, but the inspection is what confirms the work.

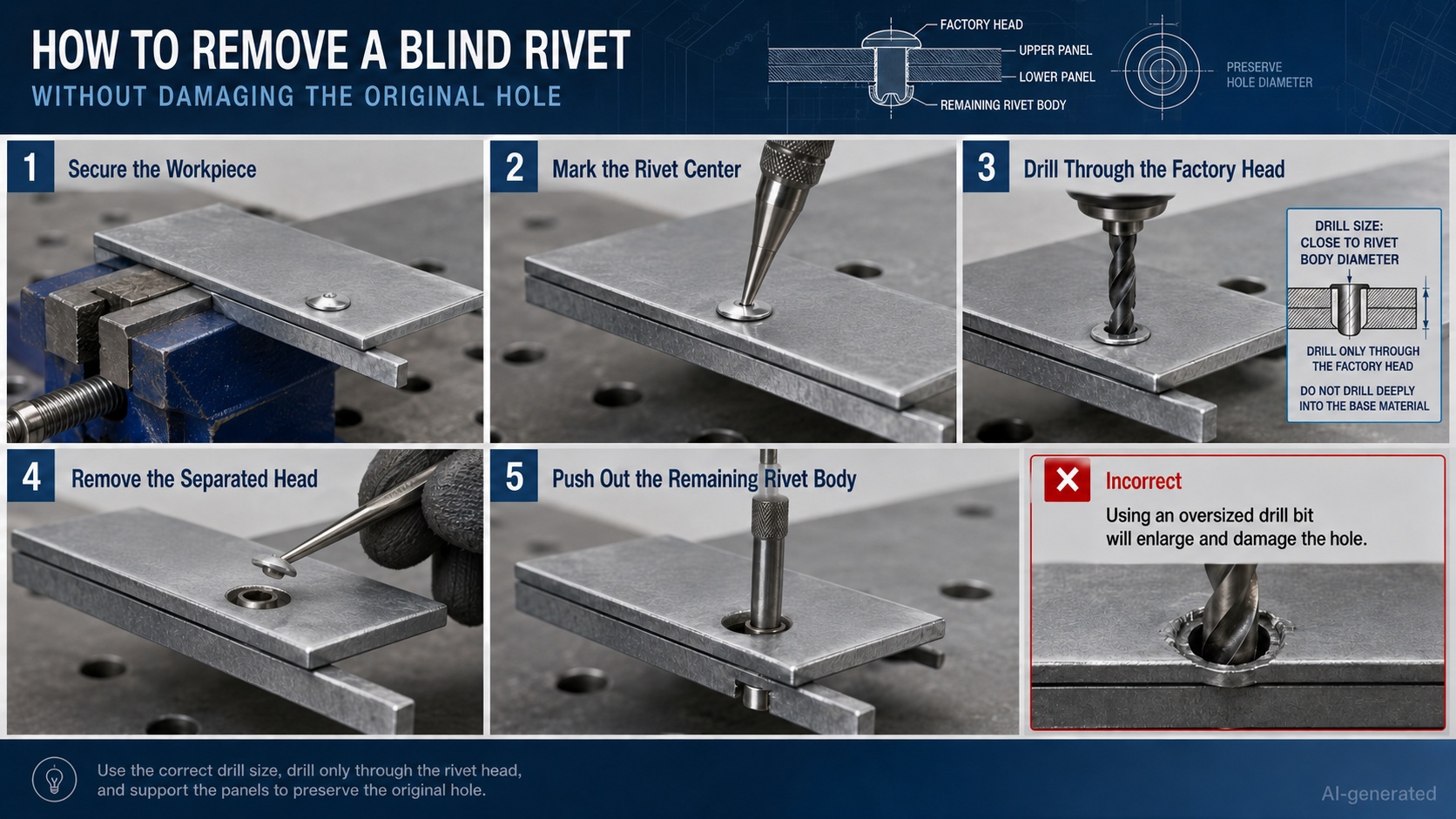

9. How to Remove Blind Rivets

Blind rivets are permanent fasteners, but they can usually be removed by drilling.

The goal is to separate the factory head from the body without enlarging the original hole.

Secure the Workpiece

Clamp or support the assembly so it cannot move while drilling.

Thin panels can vibrate or bend if they are not supported.

Mark the Center

Locate the center of the rivet head.

A center punch may help prevent the drill bit from wandering. If a remaining mandrel section blocks the center, it may need to be driven out carefully first.

Select the Drill Bit

Use a drill bit close to the rivet body diameter or the specified removal diameter.

A drill bit that is too large can enlarge the panel hole before the rivet head separates.

Drill Through the Head

Drill slowly through the center of the factory head.

Keep the drill aligned with the rivet axis. Stop when the head separates from the body. There is usually no reason to drill deeply through the entire workpiece.

Remove the Head and Body

Lift away the separated head.

Use a punch to push the remaining rivet body through the hole. Support the area around the hole to avoid bending thin sheet.

Inspect the Hole

Check for:

· Enlargement

· Ovality

· Burrs

· Cracks

· Corrosion

· Damaged coatings

· Distortion

If the hole remains within specification, the original rivet size may be installed again using a new rivet.

If the hole has enlarged, the joint should be reassessed. Installing a larger rivet automatically may reduce edge distance or weaken the surrounding material.

10. Blind Rivet Applications in Mechatronic Equipment

Blind rivets are useful in mechatronic equipment because many assemblies combine sheet-metal panels, frames, wiring, sensors, fans and enclosed spaces.

Electrical Enclosures and Control Cabinets

Blind rivets can be used to join:

· Outer covers

· Ventilation plates

· Cable-routing components

· Internal dividers

· Identification plates

· Light-duty brackets

They are particularly useful where folded sheet or internal components make rear access difficult.

Machine Guards and Equipment Covers

Machine guards, motor covers, fan shrouds and transmission covers often use thin sheet-metal structures.

A blind rivet creates a permanent connection without requiring a loose nut behind the panel. This is useful in places where a dropped nut would disappear into the machine and begin a new life of its own.

Sensor and Electronic Housings

Compact sensor housings and electronic enclosures may have very little space for nuts, washers or wrench access.

Small blind rivets can secure covers, labels and internal brackets, provided that sealing, vibration and maintenance requirements have been evaluated.

Ventilation and Cooling Components

Fan housings, louvers, air ducts and filter frames frequently use overlapping sheet-metal joints.

For moisture-sensitive equipment, the designer should determine whether an open-end rivet is acceptable or whether a closed-end or sealed solution is required.

Aluminum and Mixed-Material Assemblies

Blind rivets can join aluminum panels, steel brackets and plastic covers, but material compatibility should be checked carefully.

Where a panel must be removed regularly, a screw with a nut, threaded insert or blind rivet nut is generally more suitable.

JLCMC provides mechanical components for automation equipment, frames, transmission systems, linear-motion assemblies and machine structures. When blind rivets are part of the design, engineers and purchasing teams can compare material, diameter, hole requirements, riveting range and load data alongside the surrounding components.

11. Advantages, Limitations and Common Problems

Main Advantages

A blind rivet offers:

· One-sided installation

· Fast setting

· No tapping

· No loose rear nut

· Suitability for thin materials

· Compact joint design

· Compatibility with manual and automated tools

· Wide material and head-style availability

Main Limitations

A blind rivet also has limitations:

· The joint is not intended for routine disassembly

· Removal usually requires drilling

· Incorrect grip range can weaken the joint

· Hole quality strongly affects performance

· Standard open-end rivets are not automatically sealed

· Blind-side inspection may be difficult

· Dissimilar materials may create corrosion problems

· Standard products may not suit structural or safety-critical joints

Rivet Spins in the Hole

Likely causes include:

· Oversized hole

· Incomplete setting

· Incorrect grip range

· Soft material deformation

Joint Remains Loose

Possible causes include:

· Rivet is too long for the joint

· Materials were not clamped before setting

· Burrs remain between the sheets

· Tool stroke was incomplete

Mandrel Breaks Too Early

Possible causes include:

· Tool misalignment

· Wrong nosepiece

· Damaged rivet

· Incorrect grip range

· Poor hole alignment

Mandrel Does Not Break

Possible causes include:

· Insufficient tool force

· Worn jaws

· Wrong nosepiece

· Rivet exceeds tool capacity

· Incomplete setting cycle

Rivet Pulls Through the Material

Possible causes include:

· Head diameter is too small

· Material is too soft

· Hole is oversized

· Blind-side bearing area is insufficient

A large-flange, peel or load-spreading rivet may be more suitable.

Corrosion Appears Around the Joint

Possible causes include:

· Incompatible metal combination

· Damaged coating

· Moisture trapped in the joint

· Unsuitable rivet material

· Salt or chemical exposure

12. Frequently Asked Questions

Are Blind Rivets and Pop Rivets the Same?

In everyday use, the terms usually refer to the same type of mandrel-style fastener. Blind rivet is the generic category name, while POP® originated as a brand name.

Why Is It Called a Blind Rivet?

It is called “blind” because it can be installed without accessing or seeing the rear side of the joint.

Can a Blind Rivet Be Removed?

Yes. The usual method is to drill through the factory head and push the remaining body out of the hole.

Can Blind Rivets Be Reused?

No. A removed blind rivet should be replaced with a new fastener.

What Is Blind Rivet Grip Range?

Grip range is the total material thickness that the rivet can clamp correctly. It may also be called riveting range in product specifications.

How Do I Choose Blind Rivet Length?

Measure the complete joint thickness and select a rivet whose published grip range includes that value. Do not choose by body length alone.

What Hole Size Is Needed?

Use the hole diameter stated in the product specification. The hole is normally slightly larger than the nominal rivet diameter, but the exact value varies by product.

Are Blind Rivets Waterproof?

Standard open-end blind rivets should not automatically be considered waterproof. Closed-end or sealed designs may provide better leakage resistance when installed correctly.

Is Stainless Steel Better Than Aluminum?

Not in every application. Stainless steel usually provides higher strength and corrosion resistance, but it also requires more installation force and may create compatibility concerns with aluminum.

Can Blind Rivets Be Used in Plastic?

Yes, but standard small-head rivets may crush or pull through soft plastic. Large-flange, peel or load-spreading designs are often more suitable.

Conclusion

A blind rivet is an efficient solution for permanent one-sided fastening, but a dependable joint requires more than inserting the rivet and pulling until the mandrel snaps.

Correct selection begins with the base materials, total joint thickness, grip range, hole diameter, load direction, corrosion environment, head style, blind-side clearance and available installation tool.

For general sheet-metal assemblies, an open-end blind rivet may be sufficient. Soft materials may need a large-flange or load-spreading design. Variable thicknesses may favor a multi-grip rivet, while structural or sealed joints require purpose-designed products.

Engineers and purchasing teams can review available materials, diameters, hole requirements, riveting ranges and load data through the JLCMC Rivets category. The right rivet should form consistently, clamp the materials firmly and match the actual mechanical and environmental demands of the assembly—not simply be the first one that fits through the hole.
